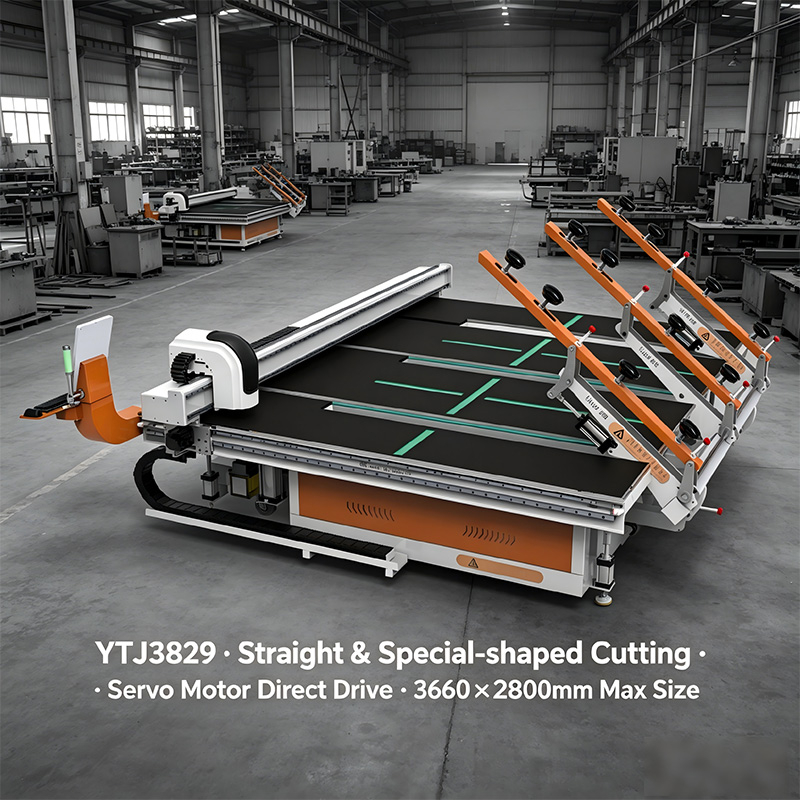

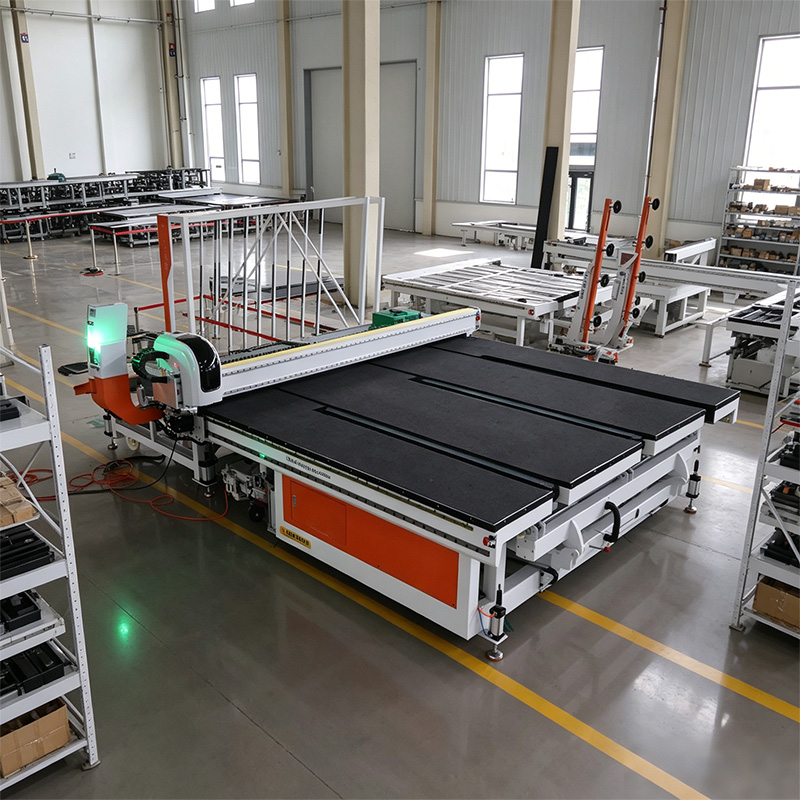

YTJ3829 Intelligent CNC Glass Loading & Cutting Integrated Machine (Without Separate Breaking Table) | Max 3660×2800mm Auto Profiling Glass Cutter
Tired of slow manual loading, poor profiling accuracy and massive glass waste? YTJ3829 integrated glass cutting machine without separate breaking table is customized for small & medium glass factories. Installed power reaches 14.2kW, floor dimension 3790×4925×1600mm, countertop height 880±30mm, suitable for 3–18mm architectural, furniture, mirror and cabinet glass processing. Equipped with telescopic boom auto loading and Weimin dedicated glass cutting control system, cutting head speed 0–200m/min, cutting acceleration ≥8m/s². It supports straight line, circle, polygon and custom profiling cutting. Intelligent nesting software improves raw glass utilization rate; remote walking design realizes flexible workshop shifting. Auto lubrication and self-adaptive pressure cut maintenance cost. Optional labeling and LOW-E film removal functions meet both ordinary and energy-saving coated glass production, effectively expand your order range & profit margin.
| Item | Item description | |
Machine and technical parameters | Total floor space (including the breaking table,the height does not include the height of the upper arm when unfolded) | Length*width*height: about 3790*4925*1600mm |
| Processing glass size | MAX.3660*2800mm | |
| Countertop height | 880±30mm (foot adjustable) | |
| Loading Depth | About 700 mm | |
| Power Requirements | Three fires and one ground wire 380V ( special voltages should be communicated in advance ) | |
| Installed power | About 14.2 kW | |
| Compressed air | 0.6 -0.8 Mpa exhaust volume 0.6-1m3/min | |
| Glass thickness | 3 ～ 18mm Lower than 3mm or higher than 12mm (excluding 12mm) must be informed in advanc | |
| Cutting head speed | 0-2 0 0M/min ( can be set ) | |
| Cutting bridge speed | 0-2 0 0M/min ( can be set ) | |
| Cutting acceleration | ≥8m/s² | |
| Cutting knife holder | cutting knife can rotate 360 degrees(accurately cut line and special shape) | |
| Cutting accuracy | ≤±0.3mm/m(based on the cutting size before breaking) | |
Key Standard Features
· Auto Telescopic Loading System
3 retractable booms with total 12 imported double-layer NBR suction cups, 700mm loading depth & anti-dual-sheet design. Remote machine moving function with auto cylinder locking to stabilize cutting operation.
Benefit: Stable suction for oversized glass sheets, eliminate double-glass breakage risk, 100% improvement on loading efficiency.
· High Precision Beltless Servo Cutting System
Grade 6 ground helical gear rack + Shihlin X/Y axis servo direct drive without belts. Cutting acceleration ≥8m/s², 0–200m/min adjustable cutting speed, 360° rotatable cutter head for straight & irregular profiling cutting. Equipped with fiber optic auto edge detection, self-adaptive cutting pressure, synchronized auto oil feeding and automatic rail lubrication.
Benefit: Zero clearance deviation during long-hour continuous operation, unified cutting tolerance ≤±0.3mm/m, less rework & daily maintenance workload.
· Intelligent Nesting & Profiling CNC Software
Compatible with OPTIMA, Guiyou standard G-code and DXF files. Intelligent nesting program maximizes glass utilization rate and reduces raw sheet waste. Built-in abundant special-shaped template library, supports scanning physical templates to generate cutting graphics automatically.
Benefit: Friendly for new operators, no professional full-time draftsman needed, lower labor recruitment threshold.
· Auto Glass Conveying & Auxiliary Breaking Ejector Rods
3 conveyor belts with auto drag function to save positioning time; 1 horizontal & 2 vertical pneumatic ejector rods for convenient glass splitting. Air float design avoids scratch on glass surface.
Benefit: Entire cutting process with minimal manual intervention, greatly boost overall production throughput.
· Real-Time Full Safety Monitoring Live digital voltage detection linked with auto fault alarm system. Adopt global well-known brand pneumatic and electrical components for long-term stable running.
Benefit: Timely fault warning prevents unexpected machine shutdown, extend overall machine service life.
· Optional Add-Ons
· Auto Labeler
Automatically print & paste labels with glass size, serial number, customer info, QR codes and processing parameters.
Benefit: Replace manual labeling, improve sorting efficiency and reduce human error.
· HIGH-Performance LOW-E Film Remover
Supports rectangular & irregular shaped film removal, equipped with auto dust removal & pressure compensation; 20mm / 25mm grinding wheels optional.
Benefit: Meet high-end insulated glass processing demands, increase product profit margin and expand order sources.
· Applications
Applicable Glass Types: Architectural window, curtain wall & insulated glass; Furniture & cabinet tabletop glass; Bathroom & cosmetic decorative mirrors; Art painted & custom shaped decorative glass; Household appliance supporting glass (refrigerator, oven glass). Processable Shapes: Rectangle, circle, triangle, rounded quadrilateral, pentagon & all custom irregular profiles. Standard Processing Specs: Max processing dimension 3660×2800mm, applicable glass thickness 3–18mm. Inform us in advance if you need to process glass thinner than 3mm or thicker than 12mm. Ideal Business Partners: Small & medium glass deep processing factories, door & window manufacturing workshops, furniture glass processing plants, mirror production factories. Benefit: One single machine covers all mainstream glass processing businesses, save extra equipment investment and factory space cost.
1. Main Technical Parameters
· Max processing size: 3660×2800mm
· Overall dimension: 3790×4925×1600mm (height excludes unfolded loading arm)
· Applicable glass thickness: 3–18mm; inform us in advance for glass <3mm or >12mm
· Cutting accuracy: ≤±0.3mm/m
· Adjustable cutting head speed: 0–200m/min
· Cutting acceleration: ≥8m/s²
· Power supply: 3P 380V 50Hz, total installed power 14.2kW
· Compressed air requirement: 0.6–0.8MPa, air consumption 0.6–1m³/min
· 360° rotatable cutting head equipped with German Bohle cutter wheel
2. Standard Key Components with Benefits
· Frame: Thickened welded steel with aging treatment, gantry milled reference surface Benefit: No deformation after years of use, permanent stable cutting precision
· Vacuum Loading System: XD-20 rotary vane vacuum pump, imported nitrile double-layer NBR suction cups Benefit: Stable negative pressure, no large glass falling & lower breakage rate
· Drive & Transmission Parts Grade 6 ground helical gear rack, C&U/NSK bearings, closed silent drag chain Full set of Shihlin servo & reduction motors, X-axis 1.8kW / Y-axis 0.85kW Benefit: Backlash-free transmission, powerful & smooth start-stop, vibration-free high-speed cutting, low noise & low wear to extend machine service life
· Cutting Wheel: German Bohle cutter wheel (142°/145°/152°/155° optional) Benefit: Smooth cutting line for easy breaking, wear-resistant & longer replacement cycle
· Pneumatic Parts: AirTac cylinders, Inovance precision proportional valve for auto pressure control Benefit: Auto match different glass thickness, no manual pressure adjustment & time-saving
· Cutting Table: High-density waterproof board with anti-static industrial felt Benefit: Stable performance in humid workshop, prevent glass surface scratch
· Electric Control System Shihlin PLC, Weimin dedicated glass cutting control system, OMRON encoder, Panasonic fiber optic edge sensor Benefit: Sensitive system response, zero positioning error, automatic real-time fault alarm & multi-language support
3. Premium Advantages
· Backlash-free servo direct drive structure delivers stable repeat cutting precision
· Panasonic fiber optic auto edge sensor automatically locates glass position & angle
· Stress-relief heavy-duty frame locks long-term consistent machining accuracy
· Multi-language CNC controller with real-time voltage & equipment operation monitoring
· Auto rail lubrication & synchronized automatic cutting oil supply to reduce manual maintenance
· Precision Frame Manufacturing Aged & gantry-milled welded frame, 6-grade gear racks & imported bearings for 10+ years stable precision. Benefit: Less deformation, reduce long-term repair costs.
· Global Genuine Brand Parts Shihlin, Inovance, OMRON, Panasonic, AirTac components, universal spare parts worldwide. Benefit: Fast local part replacement overseas.
· Rigorous Pre-shipment Test 72h continuous cutting aging test, full calibration of precision, vacuum, pneumatic & electric systems. Benefit: Ready-to-run upon arrival, no production delays.
· Standard Warranty 1-year warranty for frame & electric parts (wear parts excluded), free remote after-sales support. Benefit: Zero extra service cost within warranty.
· Complete Docs & Flexible Service Dual-language manuals + 24/7 remote debugging; optional overseas on-site installation & training. Benefit: Fast startup, recover investment sooner.
· CE Safety & Lifelong Upgrade CE certified with emergency stop, continuous technical update & lifelong spare parts supply. Benefit: Meet EU standards, compatible with new processing crafts permanently.
1.24/7 Tech Help: Real-time professional guidance via WhatsApp & video call.
2.Remote Fix: Fast remote fault diagnosis & software parameter adjustment.
3.Express Original Parts: In-stock genuine components dispatched within 48h via DHL global delivery.
4.1-Year Full Machine Warranty: 12-month warranty excluding consumables, plus lifetime free technical support.
Why Choose Us?
We don’t just sell machines — we fully guarantee your stable production uptime.
