YTJ3829 Intelligent Glass Loading & Cutting All-in-One Machine | Full Auto CNC Straight & Shape Glass Cutter with Air Floating Breaking Table

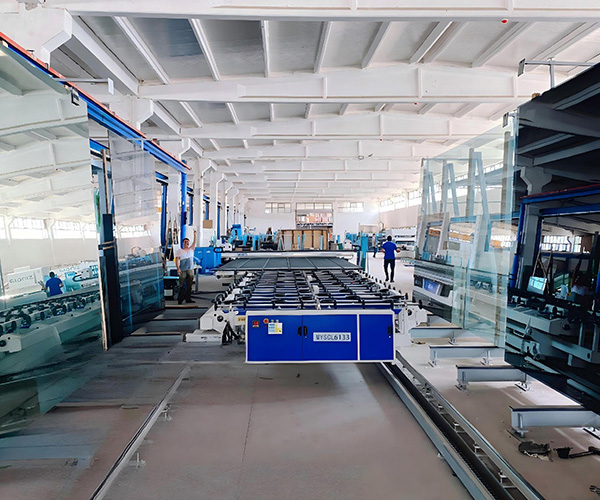

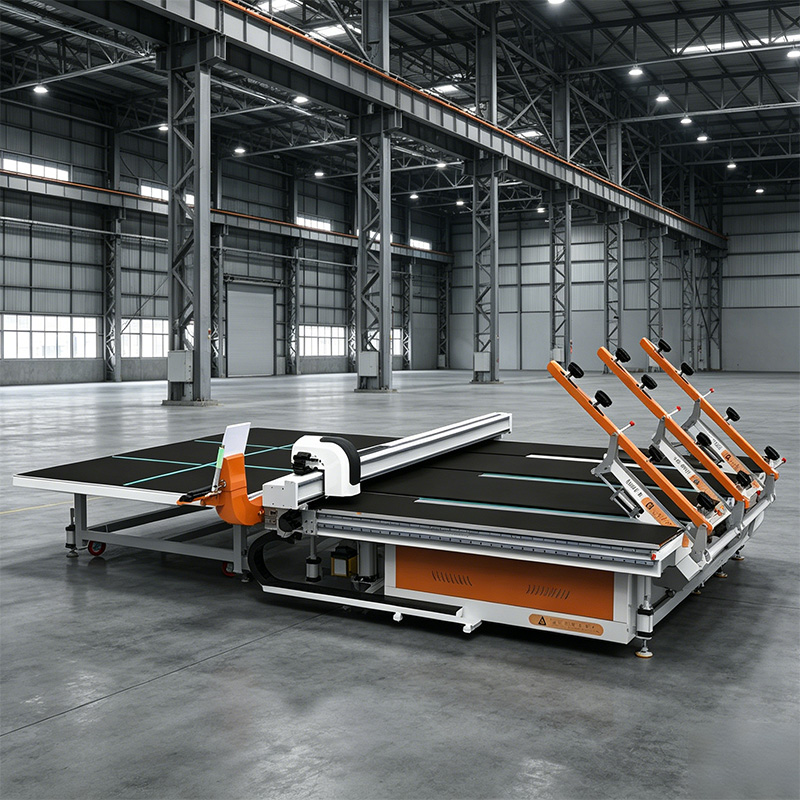

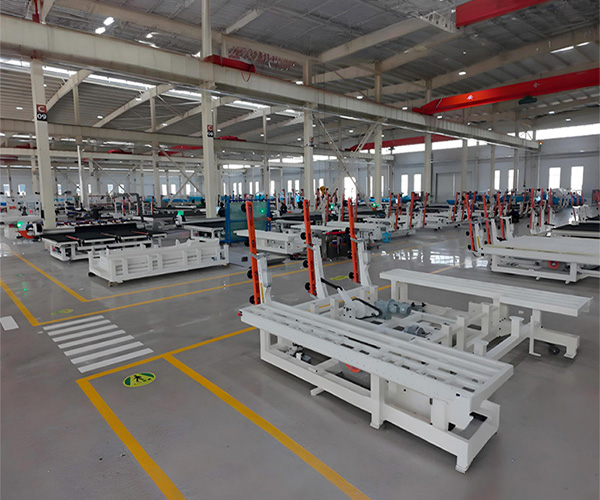

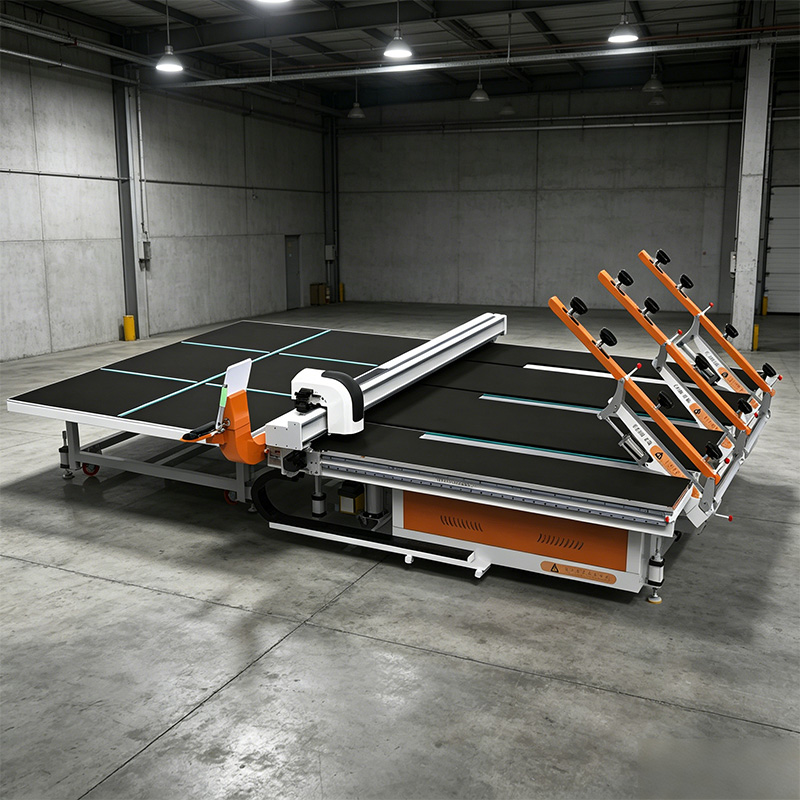

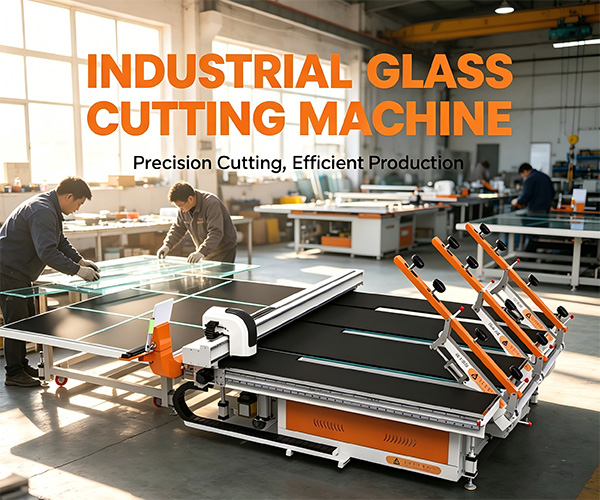

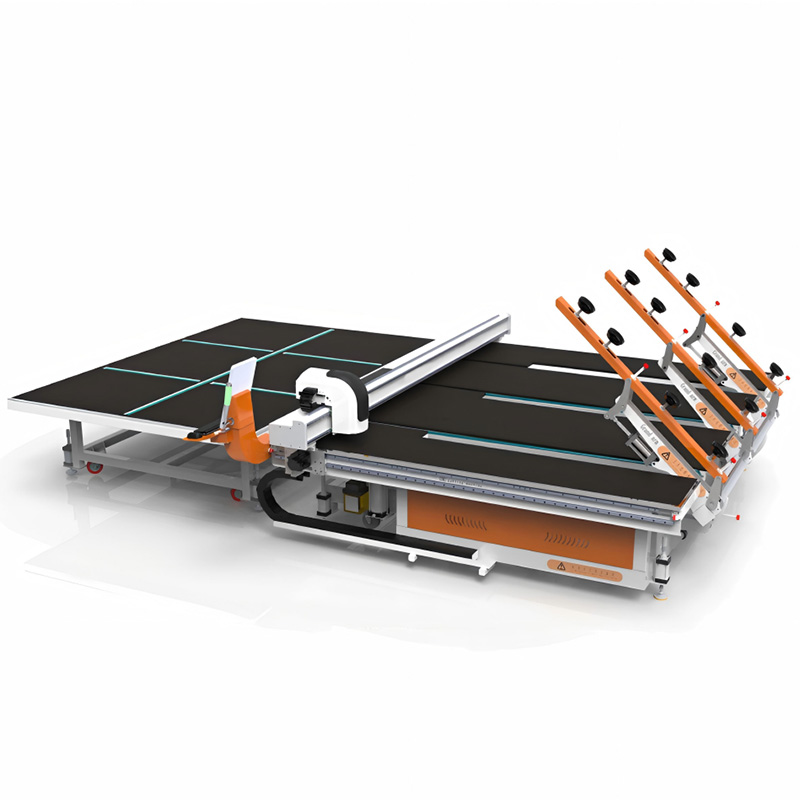

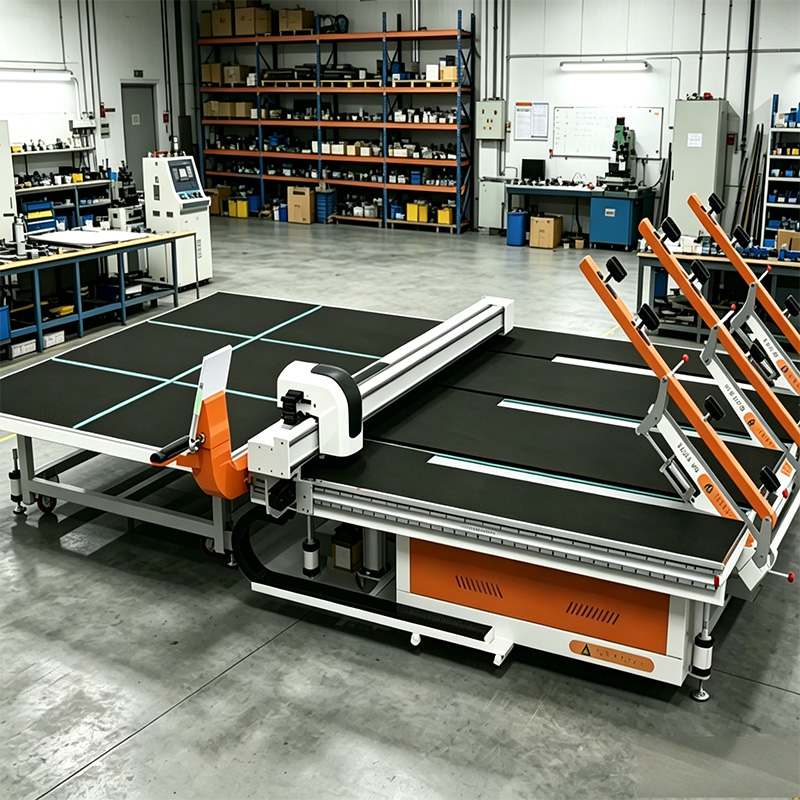

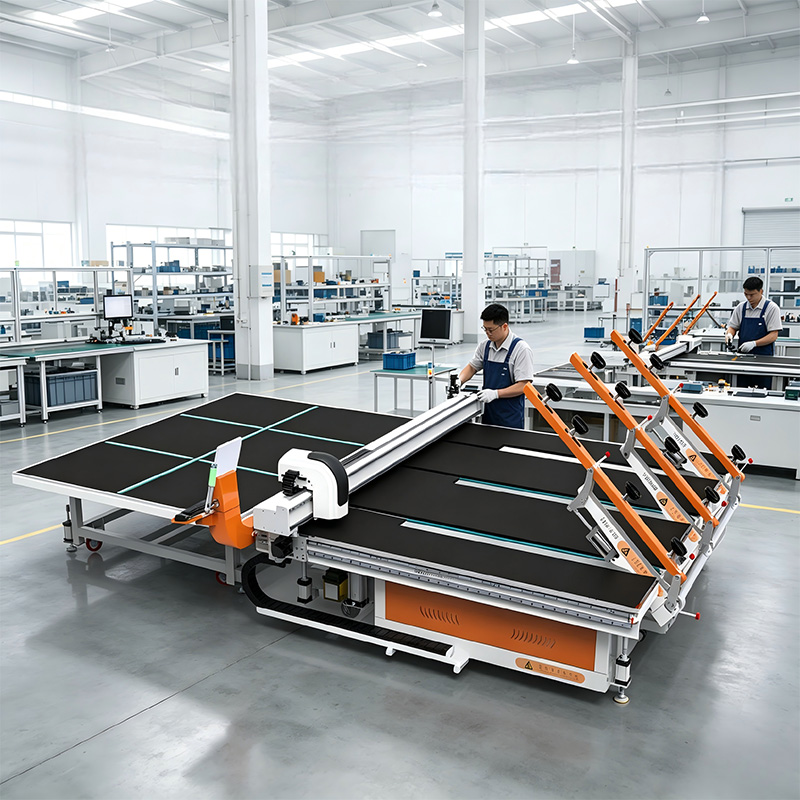

YTJ3829 all-in-one machine integrates 5 core procedures: automatic loading, intelligent nesting, CNC cutting, auto conveying and air-floating breaking, composed of cutting mainframe and independent air flotation breaking table, serving as high-output core equipment for glass processing factories. Equipped with telescopic loading boom, double-layer NBR suction cups & anti-sticking protection to avoid glass collision during loading. Max processing size reaches 3660×2800mm, applicable glass thickness 3-18mm. Compatible with OPTIMA, Guiyou optimization software & DXF file import, built-in massive special-shaped pattern library, supports template scanning profiling cutting. The machine comes with remote-controlled walking wheels for free movement in workshop; foot cylinders auto lock the machine before cutting to guarantee stable high-speed cutting. Full air-floating table prevents glass scratch during shifting. X/Y axis servo direct drive without belt transmission, max cutting speed up to 200m/min with consistent precision. Ideal for mass production of architectural glass, furniture glass, mirrors, cabinet & craft glass.

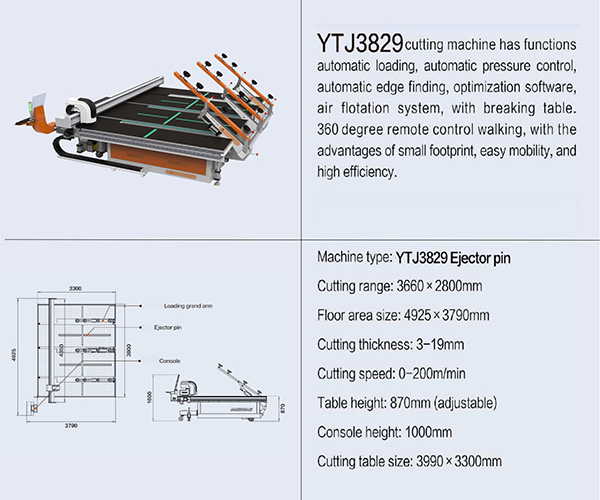

| Item | Item description | |
Machine and technical parameters | Total floor space (including the breaking table,the height does not include the height of the upper arm when unfolded) | Length*width*height: about 5780*4925*1600mm |
| Cutting table dimensions 【Including computer operating table】 | Length*width*height: about 3330*4925*1600mm | |
| Breaking table dimensions | Length*width*height: about 2450*3800*880mm (adjustable) | |
| Processing glass size | MAX.3660*2800mm | |
| Countertop height | 880±30mm (foot adjustable) | |
| Loading Depth | About 700 mm | |
| Power Requirements | Three fires and one ground wire 380V ( special voltages should be communicated in advance ) | |
| Installed power | About 17.2 kW | |
| Compressed air | 0.6 -0.8 Mpa exhaust volume 0.6-1m3/min | |
| Glass thickness | 3 ～ 18mm Lower than 3mm or higher than 12mm (excluding 12mm) must be informed in advance | |
| Cutting head speed | 0-2 0 0M/min ( can be set ) | |
| Cutting bridge speed | 0-2 0 0M/min ( can be set ) | |
| Cutting acceleration | ≥8m/s² | |
| Cutting knife holder | cutting knife can rotate 360 degrees(accurately cut line and special shape) | |
| Cutting accuracy | ≤±0.3mm/m(based on the cutting size before breaking) | |
Key Standard Features
· Fully Automatic Integrated Production Line
3 telescopic loading arms, auto edge detection, PLC synchronous cutting oil supply, 360° servo rotary cutting head, auto convey to breaking table, fully unmanned operation.
· Intelligent CNC Cutting Control System
Auto match cutting pressure per glass thickness without manual adjustment; auto rail lubrication, real-time voltage monitoring & alarm for fast troubleshooting.
· High Compatibility Processing System
Supports G code & DXF drawing, built-in library of circle, polygon, rounded shapes; template scanning profiling function, one-step forming for straight & irregular glass.
· Flexible Movement & Stable Cutting

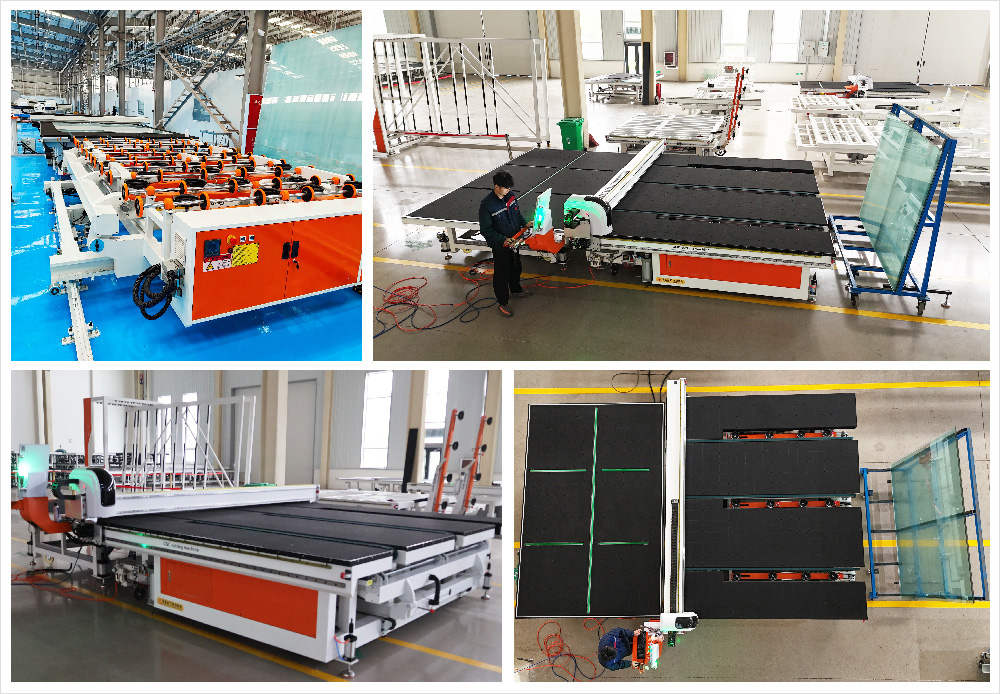

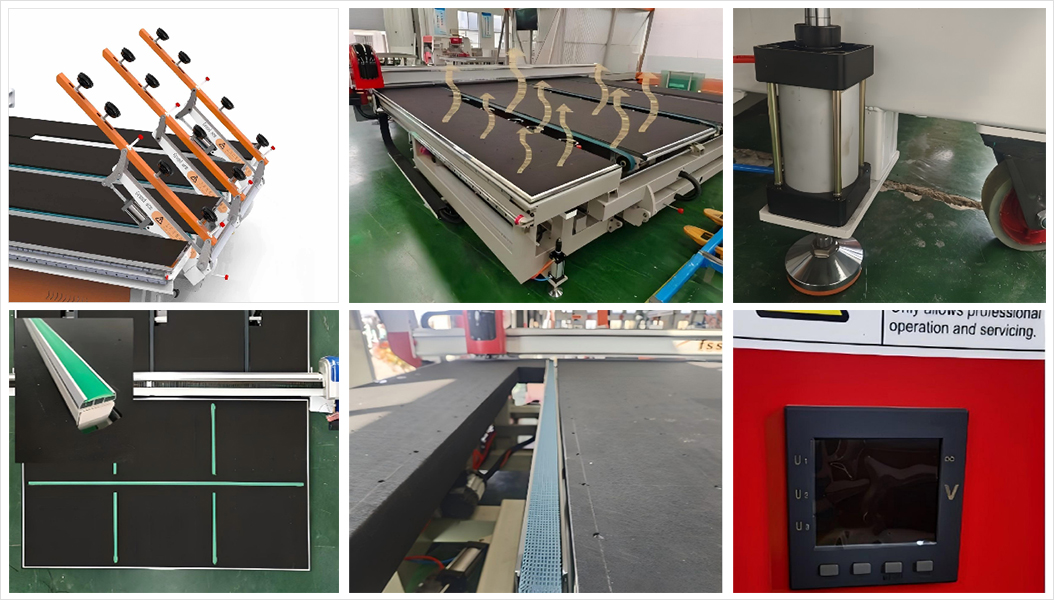

Remote control machine shifting, cylinder foot locking before cutting; waterproof air-floating countertop with centrifugal fan to avoid scratch during glass moving.
· High-Efficiency Breaking

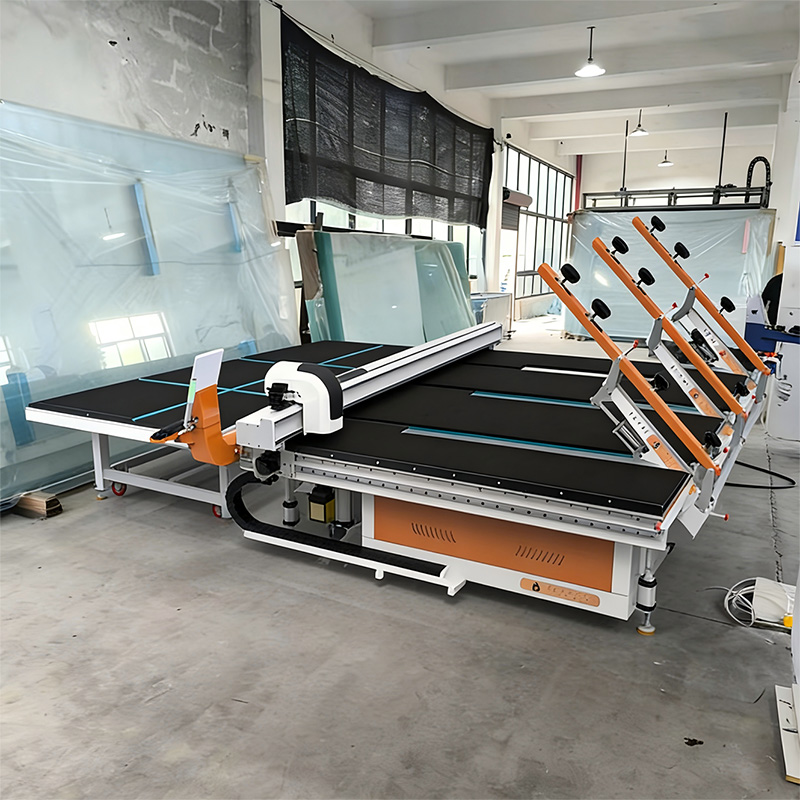

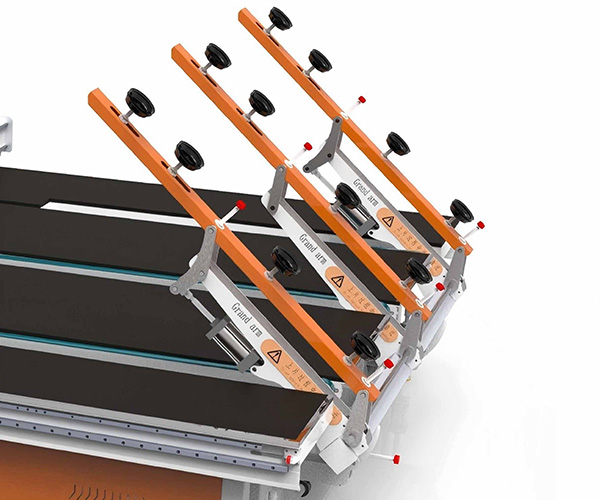

Support Air-floating breaking table with 1 horizontal + 2 vertical cylinder ejector rods, soft PVC contact surface to protect glass; ejector rod optional on cutting table for compact layout.
· Optional Upgrade Modules
Auto printing & labeling (QR code, size, customer info); 20/25mm width LOW-E film removal with auto dust collection, perfect for insulated energy-saving glass processing.
· Optional Add-Ons
· Auto Labeler
Automatically print & paste labels with glass size, serial number, customer info, QR codes and processing parameters. Benefit: Replace manual labeling, improve sorting efficiency and reduce human error.
· HIGH-Performance LOW-E Film Remover
Supports rectangular & irregular shaped film removal, equipped with auto dust removal & pressure compensation; 20mm / 25mm grinding wheels optional. Benefit: Meet high-end insulated glass processing demands, increase product profit margin and expand order sources.
· Applications
Applicable Glass Types: Architectural window, curtain wall & insulated glass; Furniture & cabinet tabletop glass; Bathroom & cosmetic decorative mirrors; Art painted & custom shaped decorative glass; Household appliance supporting glass (refrigerator, oven glass). Processable Shapes: Rectangle, circle, triangle, rounded quadrilateral, pentagon & all custom irregular profiles. Standard Processing Specs: Max processing dimension 3660×2800mm, applicable glass thickness 3–18mm. Inform us in advance if you need to process glass thinner than 3mm or over 12mm (excluding 12mm). Ideal Business Partners: Small & medium glass deep processing factories, door & window manufacturing workshops, furniture glass processing plants, mirror production factories. Benefit: One single machine covers all mainstream glass processing businesses, save extra equipment investment and factory space cost.
1. Main Technical Parameters
Max processing size: 3660×2800mm
· Overall dimension (cutting mainframe only): 3330×4925×1600mm (height excludes unfolded loading arm)
· Full set overall dimension (with air floating breaking table): 5780×4925×1600mm (height excludes unfolded loading arm)
· Applicable glass thickness: 3–18mm; inform us in advance for glass <3mm or over 12mm (excluding 12mm)
· Cutting accuracy: ≤±0.3mm/m · Adjustable cutting head speed: 0–200m/min · Cutting acceleration: ≥8m/s²
· Power supply: 3P 380V 50Hz, total installed power about 17.2kW
· Compressed air requirement: 0.6–0.8MPa, air consumption 0.6–1m³/min
· 360° rotatable cutting head equipped with German Bohle cutter wheel (142°/145°/152°/155° optional)
2. Standard Key Components with Benefits
· Frame: Thickened welded steel with aging treatment, gantry milled reference surface
Benefit: No deformation after years of use, permanent stable cutting precision
· Vacuum Loading System: XD-20 rotary vane vacuum pump, imported nitrile double-layer NBR suction cups
Benefit: Stable negative pressure, no large glass falling & lower breakage rate
· Drive & Transmission Parts: Grade 6 ground helical gear rack, C&U/NSK bearings, closed silent drag chain; Full set of Shihlin servo & reduction motors, X-axis 1.8kW / Y-axis 0.85kW, servo direct drive without belt
Benefit: Backlash-free transmission, powerful & smooth start-stop, vibration-free high-speed cutting, low noise & low wear to extend machine service life
· Cutting Wheel: German Bohle cutter wheel (142°/145°/152°/155° optional)
Benefit: Smooth cutting line for easy breaking, wear-resistant & longer replacement cycle

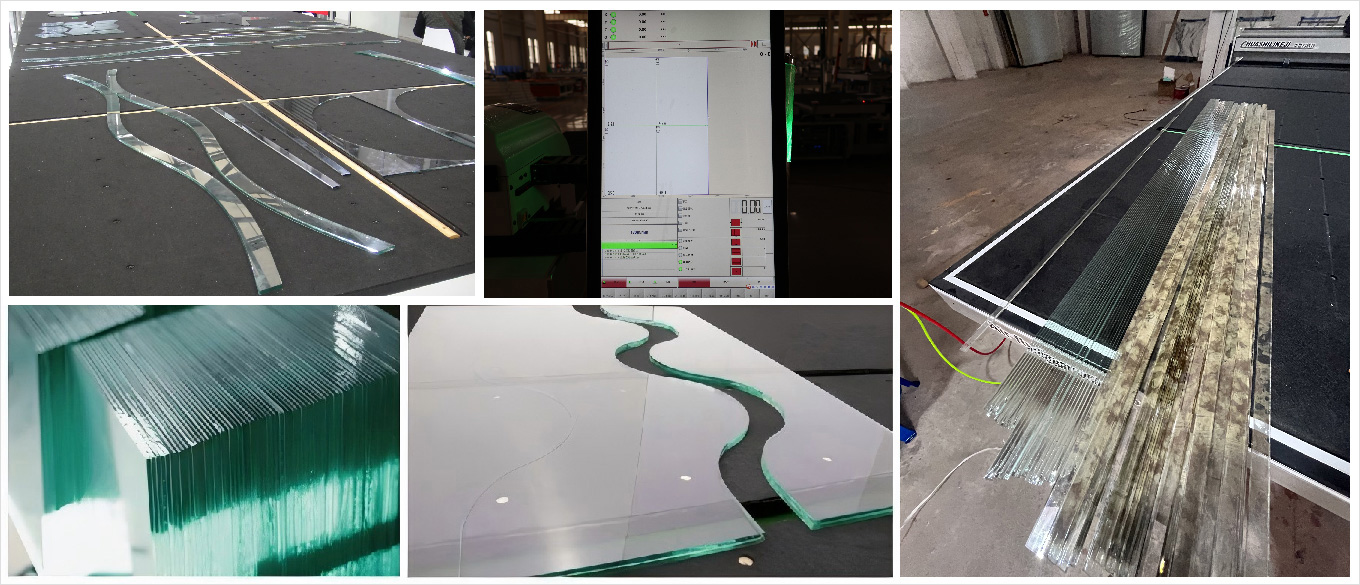

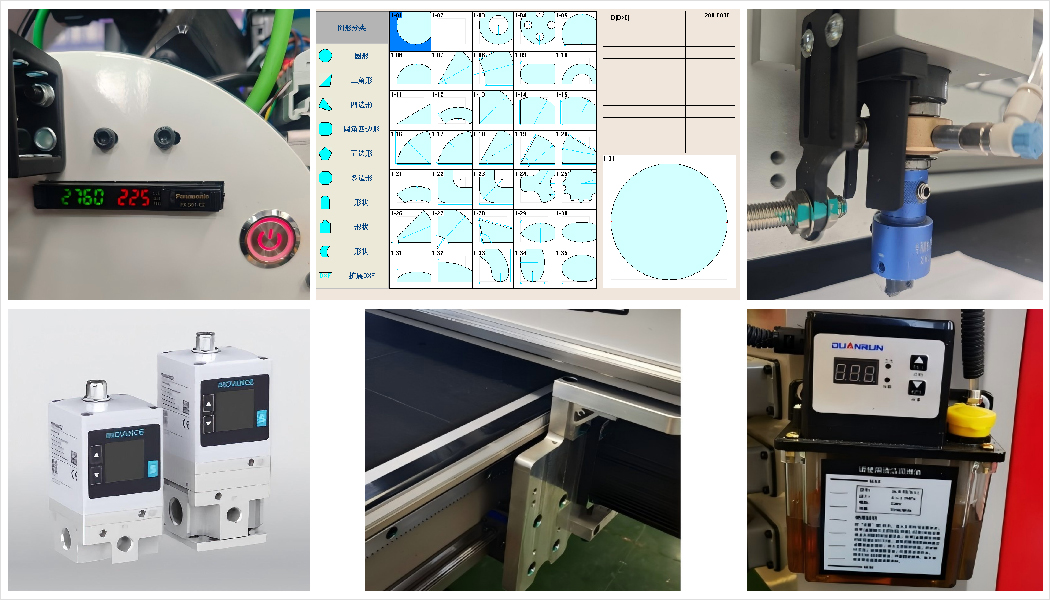

· Pneumatic Parts: AirTac cylinders, Inovance precision proportional valve for auto pressure control
Benefit: Auto match different glass thickness, no manual pressure adjustment & time-saving
· Cutting Table: High-density waterproof board with anti-static industrial felt
Benefit: Stable performance in humid workshop, prevent glass surface scratch
· Electric Control System: Shihlin PLC, Weimin dedicated glass cutting control system, OMRON encoder, Panasonic fiber optic edge sensor, compatible with OPTIMA/Guiyou nesting software & DXF files
Benefit: Sensitive system response, zero positioning error, automatic real-time fault alarm & multi-language support
3. Premium Advantages
· Backlash-free servo direct drive structure delivers stable repeat cutting precision
· Panasonic fiber optic auto edge sensor automatically locates glass position & angle
· Stress-relief heavy-duty frame locks long-term consistent machining accuracy
· Multi-language CNC controller with real-time voltage & equipment operation monitoring
· Auto rail lubrication & synchronized automatic cutting oil supply to reduce manual maintenance
· Precision Frame Manufacturing Aged & gantry-milled welded frame, 6-grade gear racks & imported bearings for 10+ years stable precision. Benefit: Less deformation, reduce long-term repair costs.
· Global Genuine Brand Parts Shihlin, Inovance, OMRON, Panasonic, AirTac components, universal spare parts worldwide. Benefit: Fast local part replacement overseas.
· Rigorous Pre-shipment Test 72h continuous cutting aging test, full calibration of precision, vacuum, pneumatic & electric systems. Benefit: Ready-to-run upon arrival, no production delays.
· Standard Warranty 1-year warranty for frame & electric parts (wear parts excluded), free remote after-sales support. Benefit: Zero extra service cost within warranty.
· Complete Docs & Flexible Service Dual-language manuals + 24/7 remote debugging; optional overseas on-site installation & training. Benefit: Fast startup, recover investment sooner.
· CE Safety & Lifelong Upgrade CE certified with emergency stop, continuous technical update & lifelong spare parts supply. Benefit: Meet EU standards, compatible with new processing crafts permanently.
1.24/7 Tech Help: Real-time professional guidance via WhatsApp & video call.
2.Remote Fix: Fast remote fault diagnosis & software parameter adjustment.
3.Express Original Parts: In-stock genuine components dispatched within 48h via DHL global delivery.
4.1-Year Full Machine Warranty: 12-month warranty excluding consumables, plus lifetime free technical support.

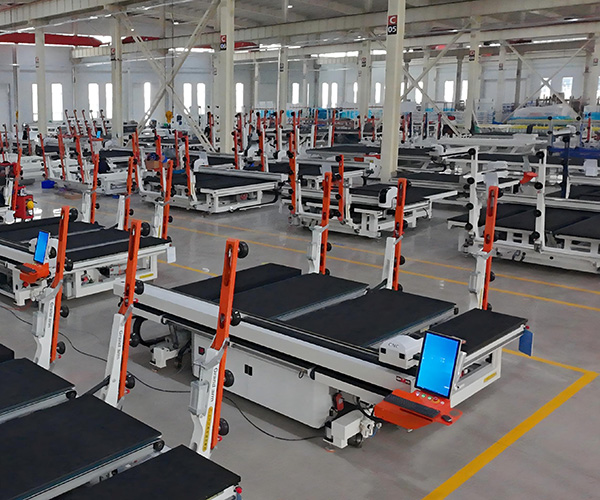

Why Choose Us?
We don’t just sell machines — we fully guarantee your stable production uptime.
