Standard Core Advantages
1.All-in-one automatic production line: auto loading, intelligent nesting, precision cutting, automatic conveying & air-floating breaking, greatly cutting labor cost and boosting output

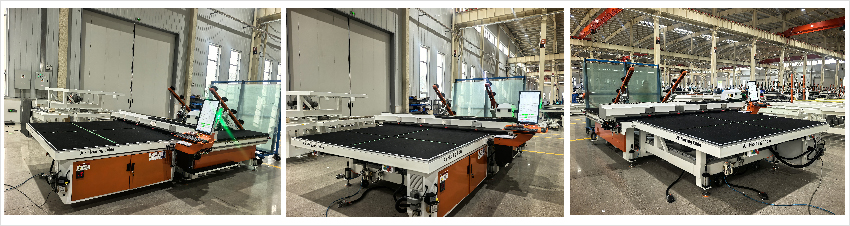

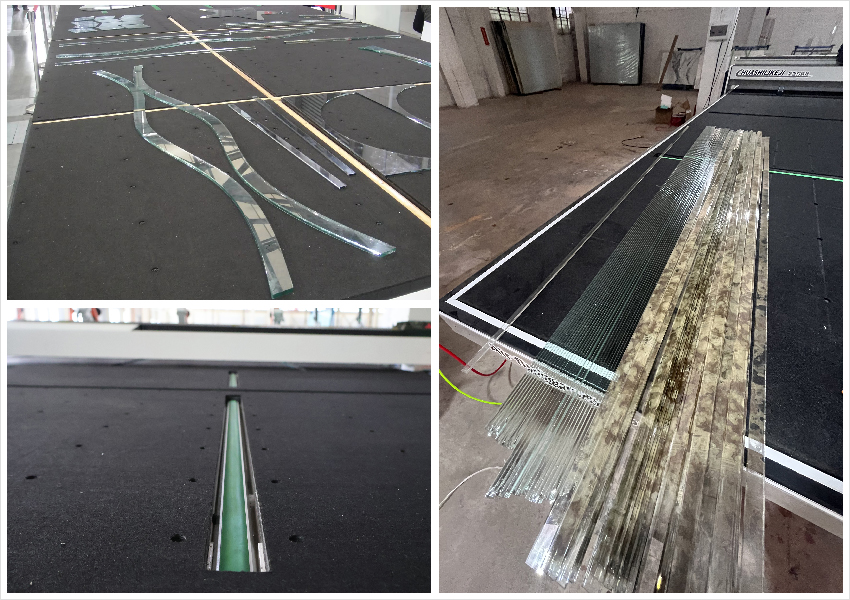

2.Straight & irregular shape dual cutting mode, suitable for architectural, furniture, cabinet, decorative mirror glass
3.Servo direct drive without belts, cutting tolerance ≤±0.3mm/m, low noise and long-term stable performance
4.Multi intelligent auto maintenance: automatic pressure control, synchronous cutting oil feeding, automatic rail lubrication, less manual maintenance & downtime
5.Compatible with OPTIMA & domestic Guiyou nesting software, intelligent layout improves glass utilization and reduces raw material waste
6.Remote-controlled movable machine body + cylinder locking feet, flexible workshop movement and stable cutting operation
7.Full air-floating countertop lifts glass with high-pressure airflow, preventing scratch during transportation
8.Intelligent profile scanning for copying cutting; auto-generate cutting drawings after template scanning, no manual drawing for shaped glass
Optional Upgrades
.Auto labeling system: automatically print labels with glass size, QR code, customer info to replace manual labeling
.LOW-E film removal device: support rectangular & shaped film removal, built-in dust removal & pressure compensation, ideal for insulated glass deep processing

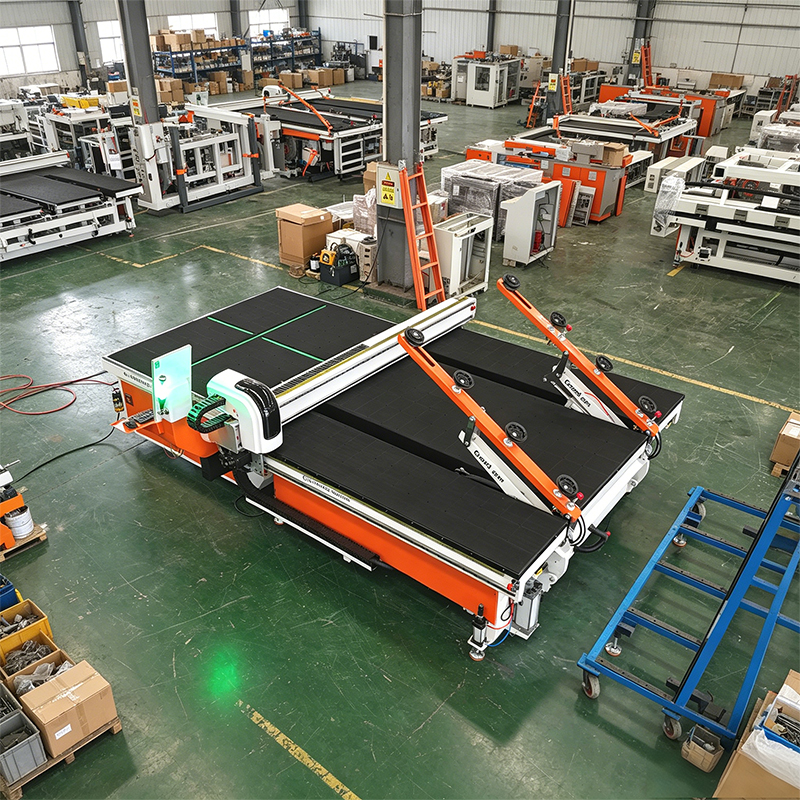

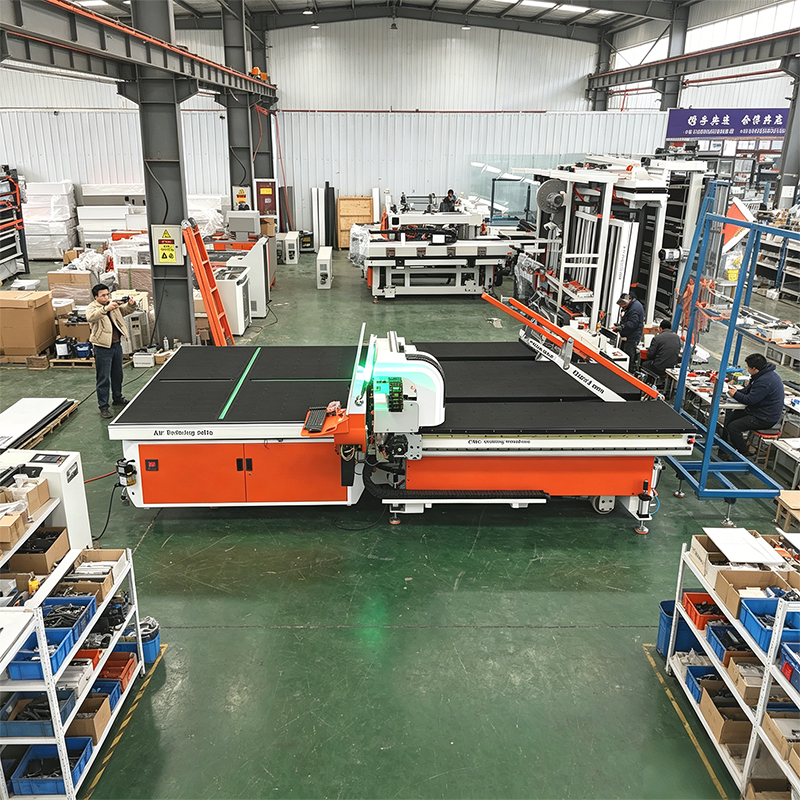

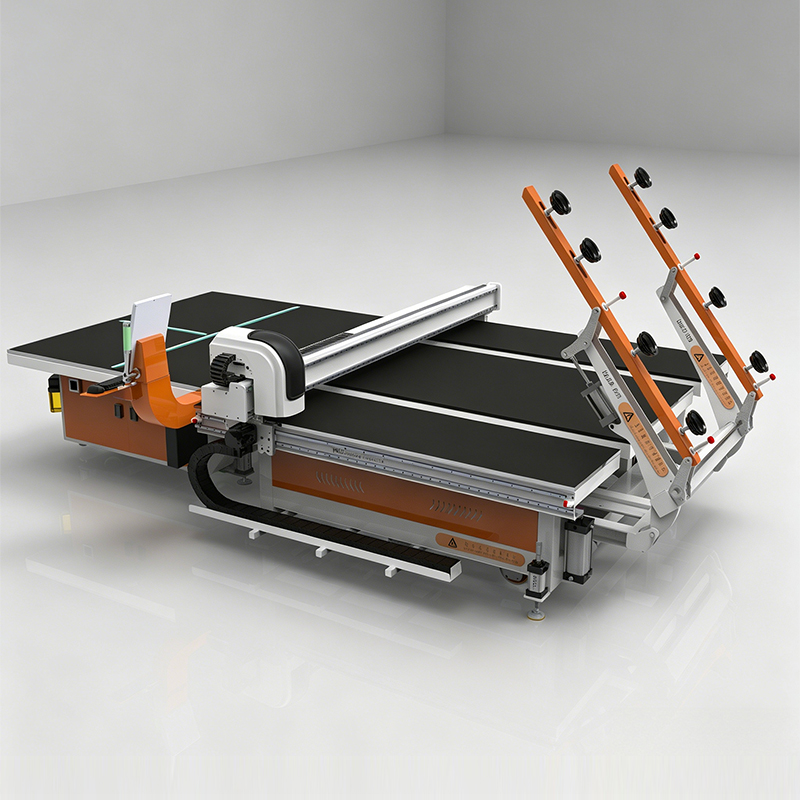

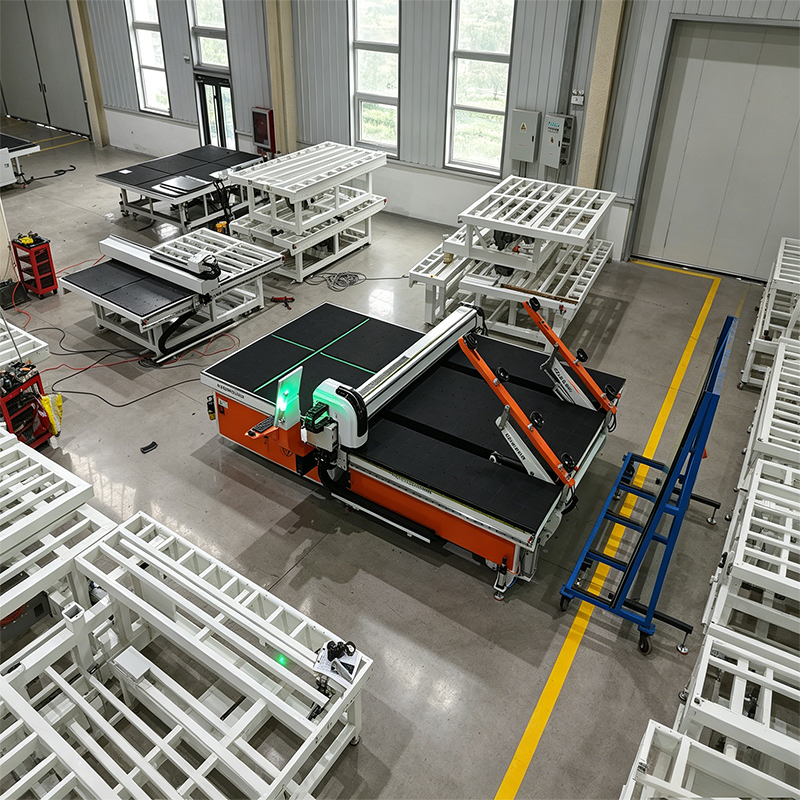

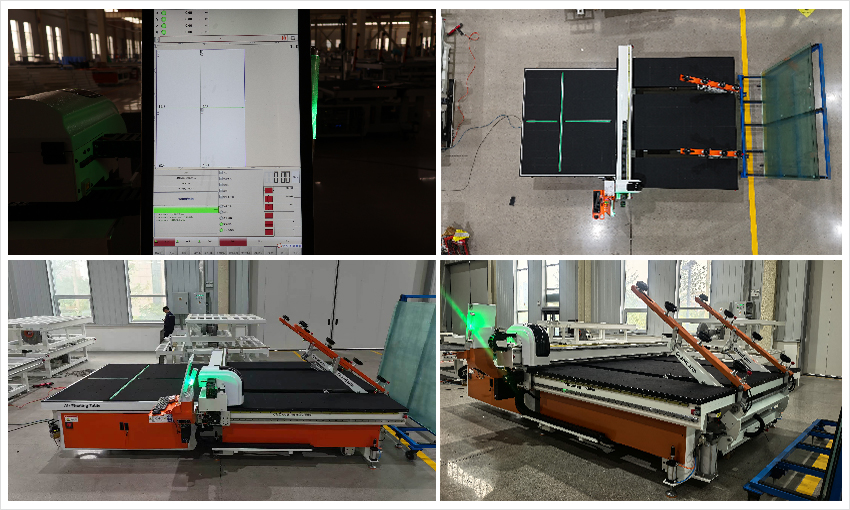

YTJ2721 All-in-One Intelligent Glass Cutting Machine | Auto Loading, Shaped Cutting & Air Float Breaking Table
YTJ2721 Intelligent Glass Loading & Cutting Machine is an all-in-one automated CNC solution built for high-volume glass processing factories. With a maximum processing size of 2700×2100mm, it handles 3–18mm thick glass sheets and seamlessly integrates retractable boom auto loading, intelligent nesting optimization, high-speed cutting, automatic conveying and air-floating breaking station in one compact unit.
Powered by full CNC control and servo direct drive beltless structure, the machine reaches an adjustable cutting speed up to 200m/min with stable precision within ±0.3mm per meter, greatly cutting rework rates and labor input by over 60%. Built-in air float countertops lift glass via high-pressure airflow to avoid surface scratches, while automatic pressure adjustment and synchronous cutting oil feeding simplify daily operation and reduce manual maintenance.
Compatible with Italian OPTIMA and domestic Guiyou nesting software, it maximizes glass material utilization to lower raw material waste. It supports both straight and irregular shaped cutting for architectural, furniture, cabinet, decorative and mirror glass. Optional auto labeling and high-performance LOW-E film removal modules are available to satisfy full deep processing requirements.
| Item | Item description | |

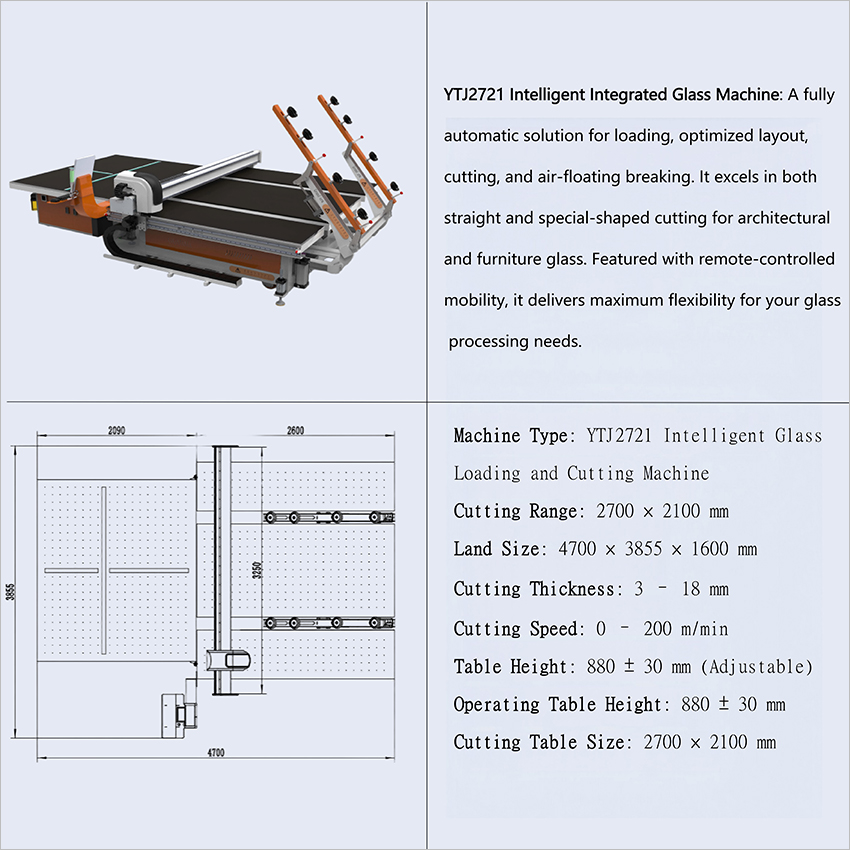

Machine and technical parameters | Total floor space (including the breaking table,the height does not include the height of the upper arm when unfolded) | Normal model: Length*width*height:4700*3855*1600mm |
| Processing glass size | MAX：2700*2100mm | |
| Countertop height | 880±30mm (Adjustable feet) | |
| Loading Depth | 700mm | |
| Power Requirements | 3P，380V，50Hz( special voltages should be communicated in advance ) | |
| Installed power | About 12kW | |
| Compressed air | 0.6 -0.8 Mpa exhaust volume 0.6-1m3/min | |
| Glass thickness | 3 ～ 18mm;Lower than 3mm or higher than 12mm (excluding 12mm) must be informed in advance | |
| Cutting head speed | 0-2 0 0M/min ( can be set ) | |
| Cutting bridge speed | 0-2 0 0M/min ( can be set ) | |
| Cutting acceleration | ≥8m/s² | |
| Cutting knife holder | cutting knife can rotate 360 degrees(accurately cut line and special shape) | |
| Cutting accuracy | ≤±0.3mm/m(based on the cutting size before breaking) | |
Key Standard Features

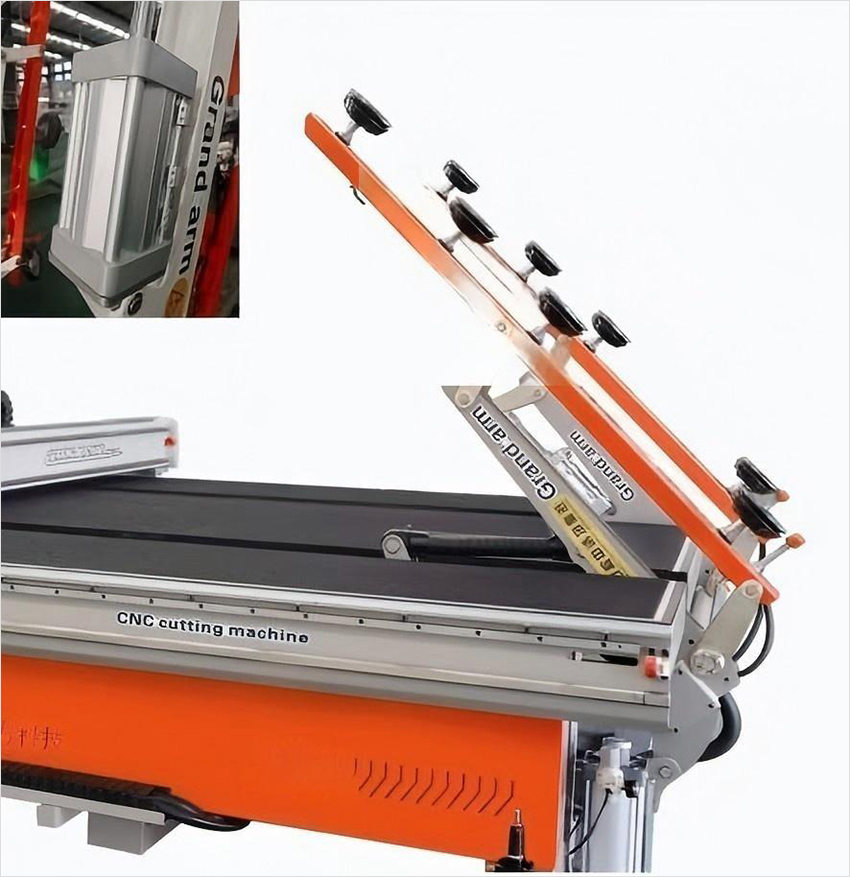

1.Auto Telescopic Loading
2 retractable booms + 8 NBR suction cups for stable large glass pickup; anti-dual-sheet design doubles loading efficiency. Remote machine moving with auto cylinder locking for steady cutting.
2.High Precision Servo Cutting
Beltless X/Y servo direct drive, low noise & acceleration ≥8m/s². 360° rotating cutter for straight & shaped profiling. Fiber auto edge detection, auto pressure & oil supply, automatic rail lubrication to cut maintenance work.
3.Smart Nesting Software
Supports OPTIMA & Guiyou G-code. Intelligent layout boosts glass utilization & reduces raw waste. Built-in shaped template library saves drawing time.

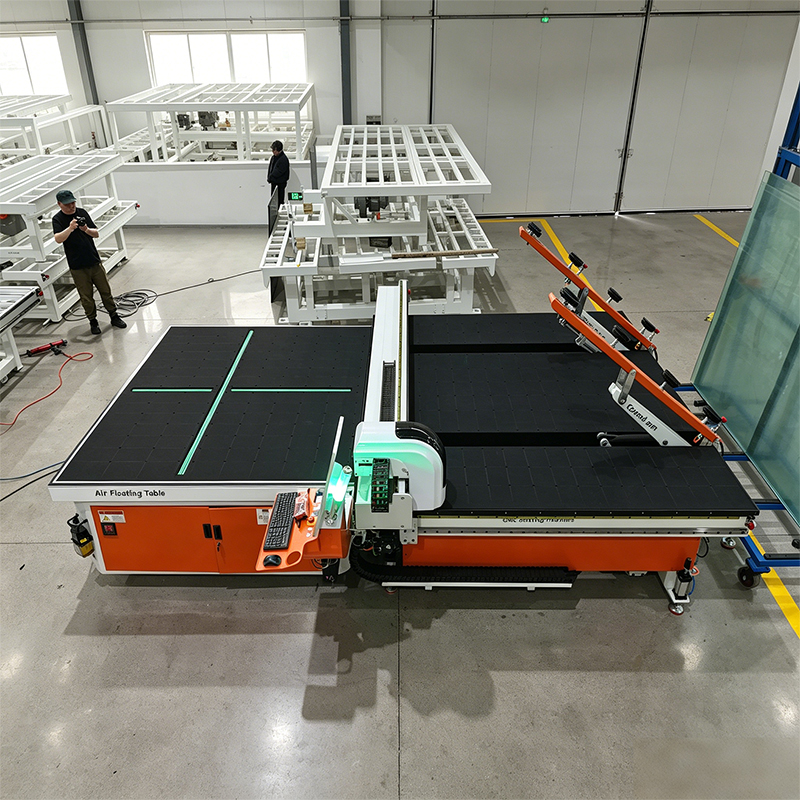

4.Air Float Conveying & Breaking Table
Dual air-floating surfaces prevent glass scratches. Horizontal & vertical pneumatic ejectors for easy breaking. 4 suction cups auto-transfer glass without manual handling.
5.Real-Time Safety Monitoring
Live voltage detection + fault alarm system. Global brand pneumatic & electric parts for stable long-term operation.
Optional Add-Ons
1.Auto Labeler: Print size, QR code & customer info automatically
2.LOW-E Film Remover: Rectangular & shaped film removal with auto dust & pressure compensation
Applications
1.Architectural glass: Windows, curtain walls, insulated glass
2.Furniture & cabinet glass: Table tops, bathroom panels
3.Decorative glass & mirrors: Art glass, bath & cosmetic mirrors
4.Home appliance glass: Fridge & oven supporting glass
1. Main Technical Parameters
●Max processing size: 2700×2100mm
●Overall size (with breaking table): 4700×3855×1600mm
●Glass thickness: 3–18mm
●Cutting accuracy: ≤±0.3mm/m
●Adjustable speed: 0–200m/min
●Power: 3P 380V 50Hz, total 12kW
●Air pressure: 0.6–0.8MPa
●360° rotatable head with German Bohle cutting wheel
2. Standard Key Components
●Frame: Thickened welded profile with aging treatment
●Drive: 6-grade ground helical gear rack, NSK/C&U bearings
●Vacuum pump: XD-20 rotary vane pump for stable suction
●Control: Inovance PLC + Weimin control system
●Pneumatic parts: AirTac & SMC valves and cylinders
●Motors: Deaour servo motors for X/Y/knife axes
●Table: Waterproof board with anti-static felt
3. Air Float Breaking Table
●1 horizontal & 1 vertical pneumatic ejector rods
●2.2KW centrifugal fan for air flotation
●Foot switch control for easy splitting
4. Premium Advantages
●Backlash-free servo direct drive for stable repeat precision
●Fiber optic auto edge sensor to locate glass automatically
●Stress-relief heavy frame to maintain long-term accuracy
●Multi-language CNC controller with real-time monitoring
1.Precision Manufacturing Welded frames go through aging & gantry milling; 6-grade ground gear racks & imported bearings ensure over 10 years stable operation.
2.Genuine Brand Components Equipped with Inovance, OMRON, SMC, AirTac and Panasonic parts, easy global spare parts replacement.
3.Strict Pre-delivery Inspection 72-hour continuous cutting test, full precision, circuit & air circuit inspection before shipment, supporting 24/7 industrial use.
4.Standard Warranty 1-year full machine warranty (wear parts excluded). Lifetime remote technical support & online debugging.
5.Safety & Iterative Upgrade CE-compliant design with emergency stop protection. Continuous equipment upgrade, latest technical documents available for all customers.
1.24/7 Tech Help: Real-time professional guidance via WhatsApp & video call.
2.Remote Fix: Fast remote fault diagnosis & software parameter adjustment.
3.Express Original Parts: In-stock genuine components dispatched within 48h via DHL global delivery.
4.1-Year Full Machine Warranty: 12-month warranty excluding consumables, plus lifetime free technical support.
