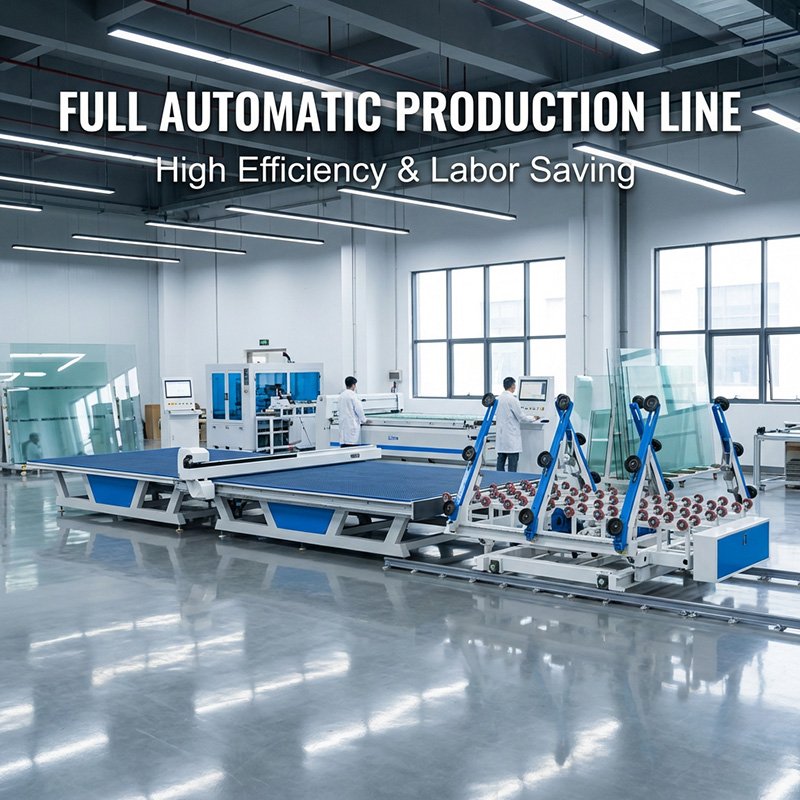

YTJ3829 Full Auto Glass Cutting Production Line | Double Flip Loading Table + CNC Shape Cutter + Air Floating Breaking Integrated Line

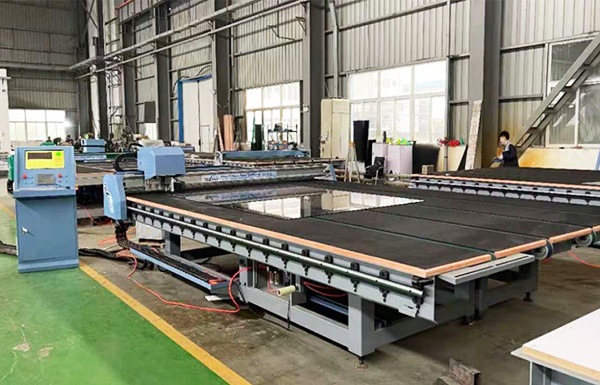

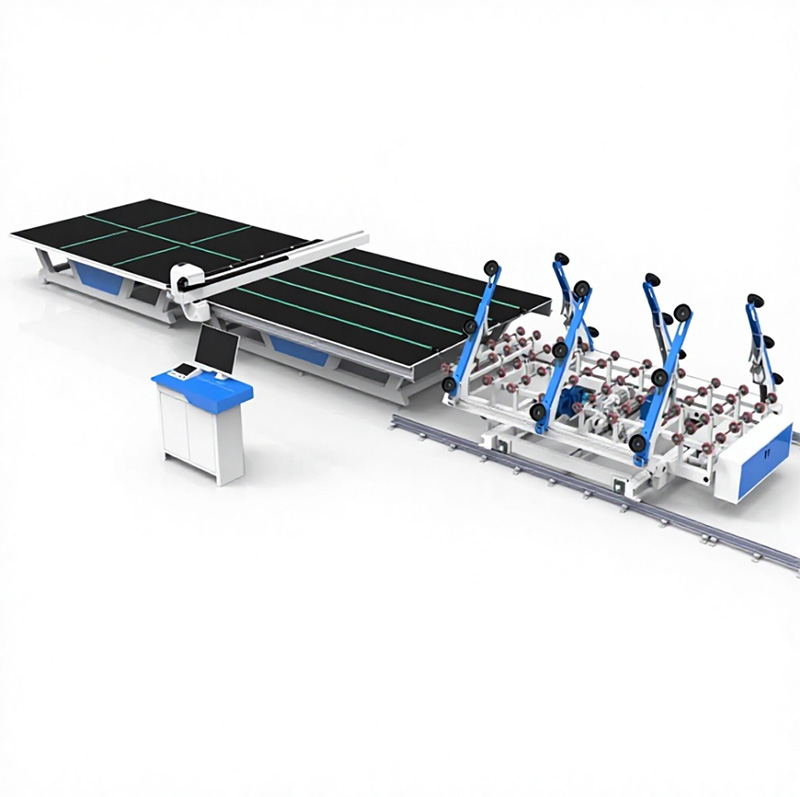

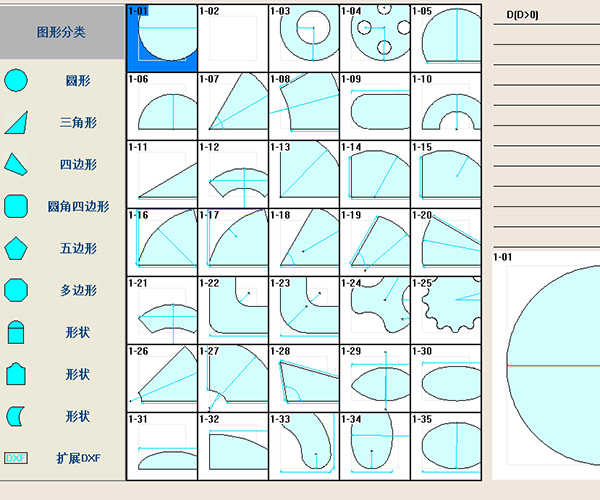

YTJ3829 intelligent glass cutting line consists of three connected modules: double-flip double-station loading table, CNC cutting machine and air-floating breaking table. It realizes full unmanned workflow: vertical glass auto flip loading, intelligent nesting, 360° profile cutting, air-floating conveying and pneumatic rod breaking. Compatible with OPTIMA & Guiyou nesting software, DXF drawing import and built-in massive shape template library. The loading table features adjustable 95–98° flip angle & ASV-40 high-power vacuum pump, stably handling max 3660×2800mm jumbo glass. X/Y/Z 3-axis Shihlin beltless servo direct drive cutter runs up to 200m/min cutting speed. Rear air-floating breaking table equipped with 1 horizontal + 2 vertical pneumatic ejector rods for foot-controlled easy splitting. Optional auto labeling & LOW-E film removal with dust collection system, ideal for mass deep processing of architectural curtain wall, furniture, mirror, home appliance & craft glass for medium & large glass factories.
| Item | Item description | |
Machine and technical parameters | Maximum size for automatic loading | 3660×2800mm |
| Glass frame height | 180mm-240mm | |
| Thickness of upper glass | 3-19mm | |
| Suction depth | ≤700mm；（Please remark for special requirement） | |
| Conveyor speed | 26m/min | |
| X-axis walking speed | 30m/min | |
| Y-axis walking speed | 10m/min | |
| On chip cycle | On average, 1 minute and 20 seconds | |
| Vacuum pressure | -70~-90 kPa | |
| Number of flipping arms (double flipping) | 6pcs | |
| Number of single arm suction cups | 3pcs（pls specify in advance if there's any special requirement） | |
| compressed air | 0.55~0.7 MPa | |
| Power requirements | 3P/45HZ/380V (if customer site) | |
| Installed power | About 12KW | |
| External dimensions (double flip double station) | About7880×3000mm | |
| Equipment weight | About 2700KG | |
Key Standard Features
·6 silicone suction cups, 95–98° adjustable flip angle, real vacuum monitoring & anti-strip lifting device
· PLC full linkage with cutter, average loading cycle 80s for non-stop production
· Benefit: Eliminate manual glass collision, double loading speed, fit various glass rack heights
· 3-axis Shihlin beltless servo direct drive, grade 6 ground rack & pinion, cutting accuracy ≤±0.2mm/m
· Auto edge finding, profile scanning, synchronous auto oil feed & timed rail lubrication
· Auto pressure matching for various glass thickness, cutter drop anti-collision protection
· Benefit: Stable precision for long-term mass run, cut manual adjustment & maintenance labor

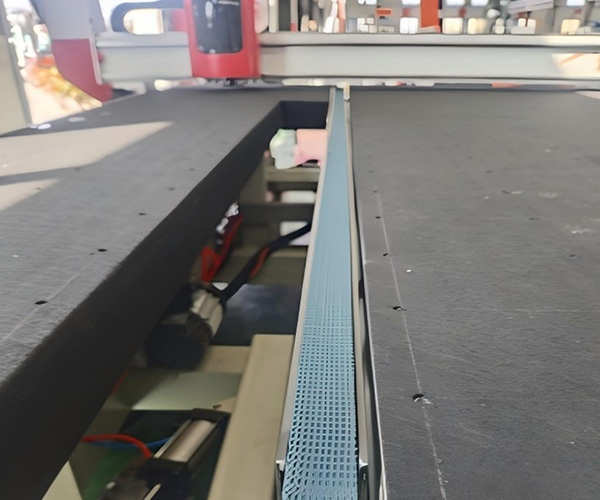

· 4mm uniform air holes, 4.0KW centrifugal fan to float glass; foot-controlled 1H+2V linked ejector rods
· Waterproof anti-static felt countertop, no glass scratch in humid workshop
· Benefit: Single operator easy splitting, reduce edge chipping loss & low table maintenance
· Optional Add-Ons
· Auto Labeler Automatically print & paste labels with glass size, serial number, customer info, QR codes and processing parameters. Benefit: Replace manual labeling, improve sorting efficiency and reduce human error.
· HIGH-Performance LOW-E Film Remover Supports rectangular & irregular shaped film removal, equipped with auto dust removal & pressure compensation; 20mm / 25mm grinding wheels optional. Benefit: Meet high-end insulated glass processing demands, increase product profit margin and expand order sources.

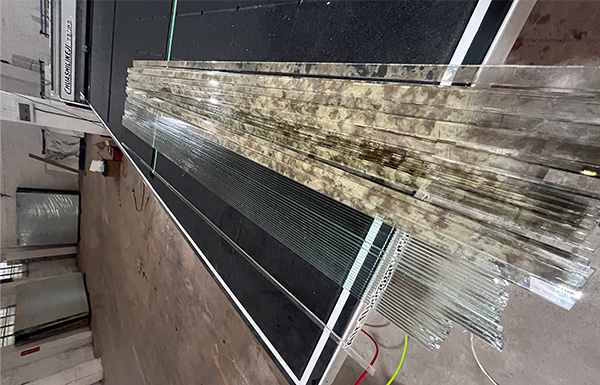

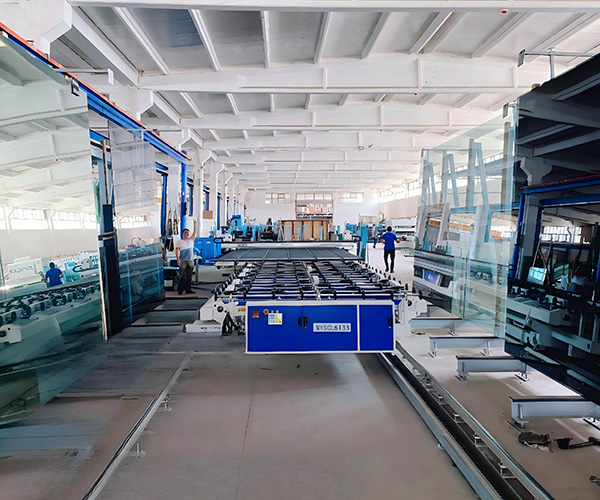

· Applications

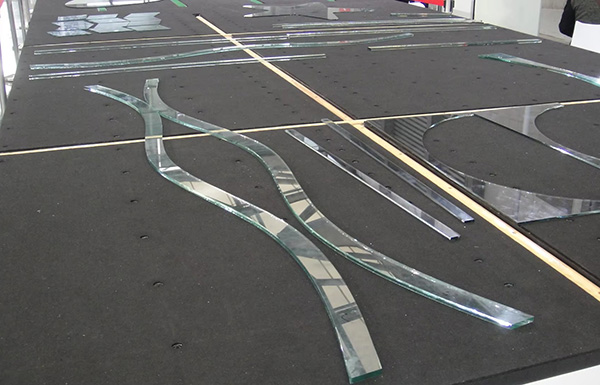

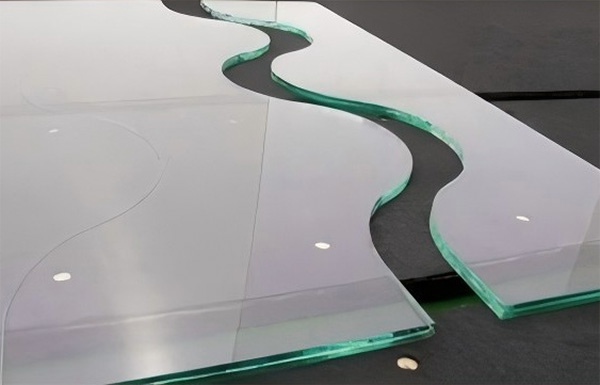

Applicable Glass Types: Architectural window, curtain wall & insulated glass; Furniture & cabinet tabletop glass; Bathroom & cosmetic decorative mirrors; Art painted & custom shaped decorative glass; Household appliance supporting glass (refrigerator, oven glass). Processable Shapes: Rectangle, circle, triangle, rounded quadrilateral, pentagon & all custom irregular profiles. Standard Processing Specs: Max processing dimension 3660×2800mm, applicable glass thickness 3–19mm. Inform us in advance if you need to process glass thinner than 3mm or over 12mm (excluding 12mm). Ideal Business Partners: Small & medium glass deep processing factories, door & window manufacturing workshops, furniture glass processing plants, mirror production factories. Benefit: One single machine covers all mainstream glass processing businesses, save extra equipment investment and factory space cost.

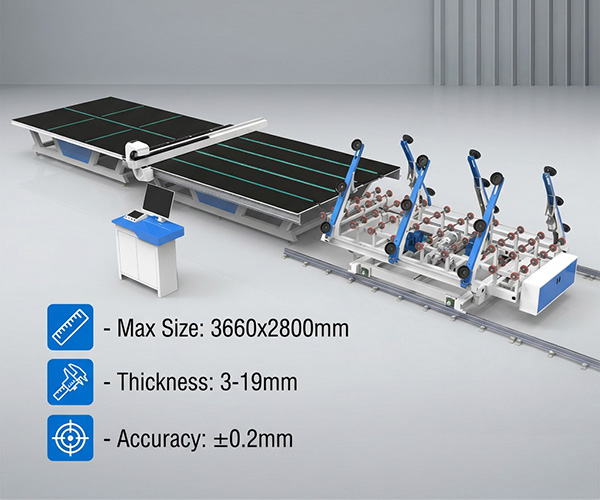

1. Main Technical Parameters
· Max processing glass size: 3660×2800mm
· Applicable glass thickness: 3–19mm; inform us in advance for glass thinner than 3mm or over 12mm
· Total installed power: Loading table 12KW + Cutter 6.5KW + Breaking table 3KW ≈21.5KW
· Power supply: 380V 3P 50Hz, compressed air 0.55–0.7MPa
· Cutting accuracy: Linear ≤±0.2mm/m; adjustable cutting speed 0–200m/min
· Average loading cycle: 80s; glass conveying speed 26m/min
· Unit outer dimension & weight
Double-flip loading table: 7880×3000mm, 2700KG
CNC cutting machine: 4400×3800mm, 2000KG
Air-floating breaking table: 3800×2900mm, 1210KG
· Unified table height: 900±30mm (adjustable)
2. Standard Key Components with Benefits

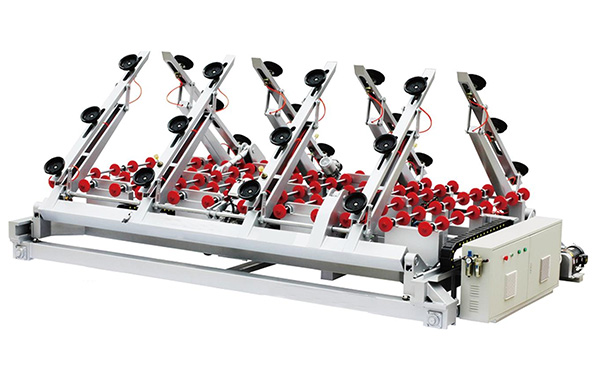

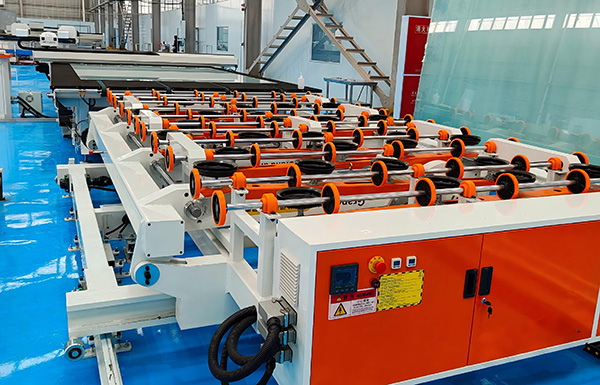

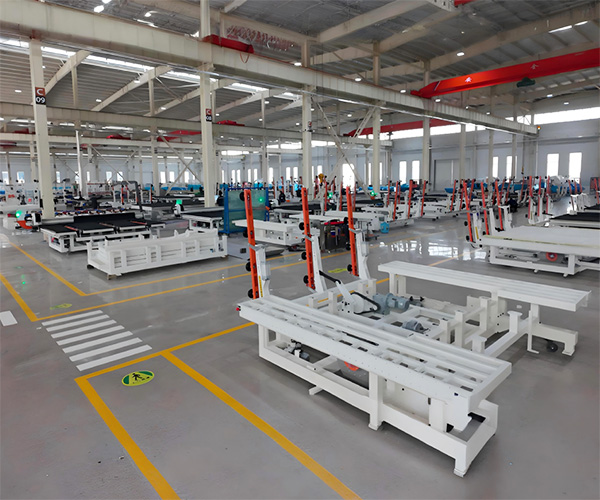

(1) Loading Table Frame & Flip Mechanism
Frame: Thickened welded steel frame with stress aging treatment, CNC gantry machined reference surface Benefit: No structural deformation after long-term heavy loading, stable flip positioning for jumbo glass sheets
(2) Vacuum Loading System (Double Flip Loading Station)
ASV-40 high-power vacuum pump, customized silicone suction cups, 6 flip arms with 3 cups per arm Benefit: Stable -70~-90kPa negative pressure, anti-strip lifting design prevents glass double-sheet adhesion & breakage

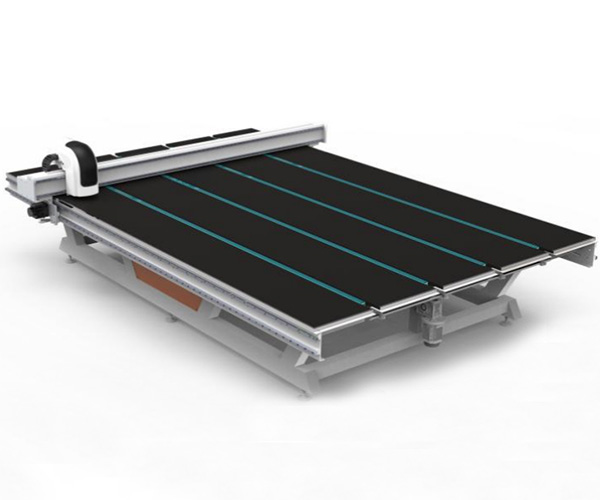

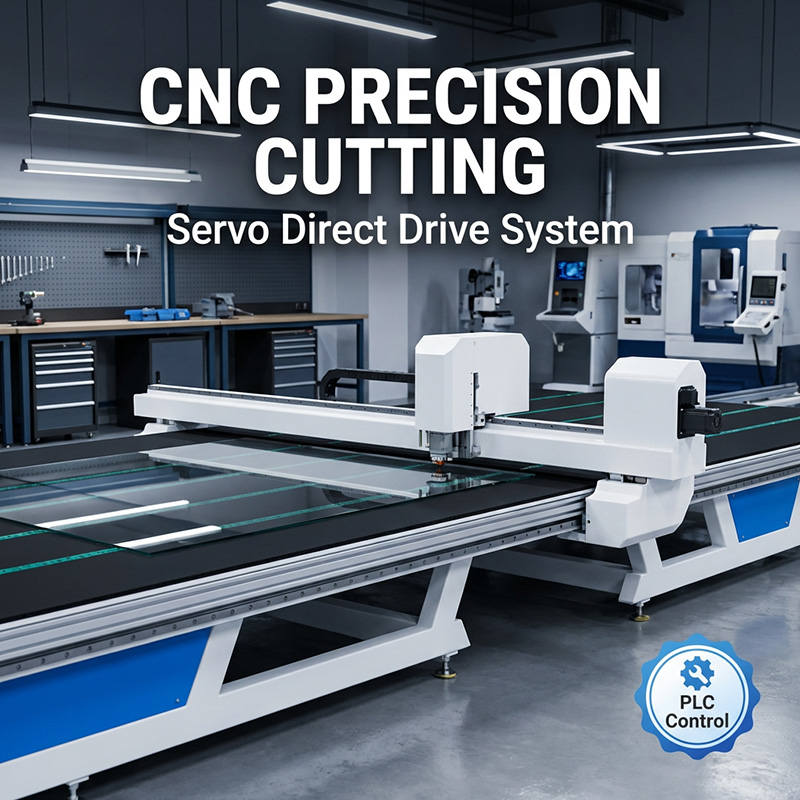

(3) Drive & Transmission Parts for Cutting Machine
Taiwan T-WIN Grade 6 ground helical gear rack & linear guide, C&U/NSK silent bearings, closed silent drag chain; Full Shihlin X/Y/Z servo motors (X 1.8kW / Y 0.85kW / Z 0.4kW), beltless servo direct drive Benefit: Zero-backlash transmission, smooth high-speed cutting up to 200m/min, low vibration & low wear to extend service life

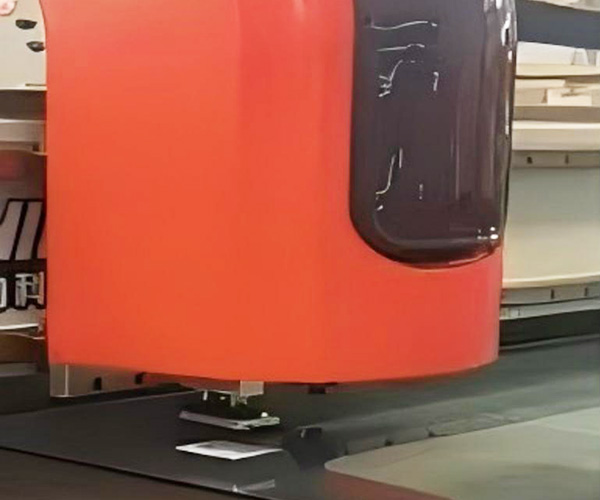

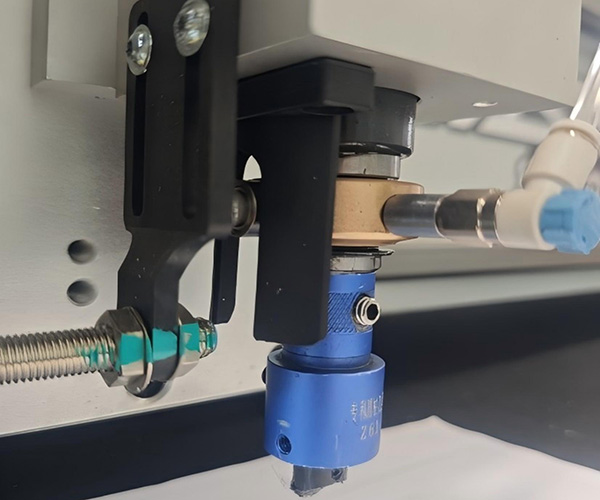

(4) Cutting Wheel
German Bohle cutter wheel (142°/145°/152°/155° optional) Benefit: Ultra-smooth cutting score line for easy splitting, high wear resistance to reduce replacement frequency
(5) Pneumatic Components

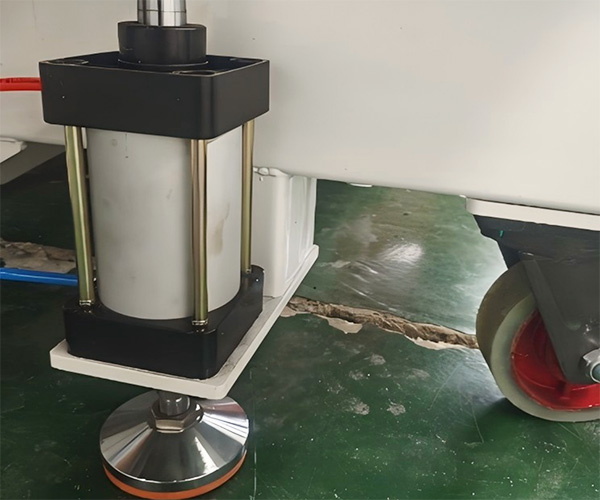

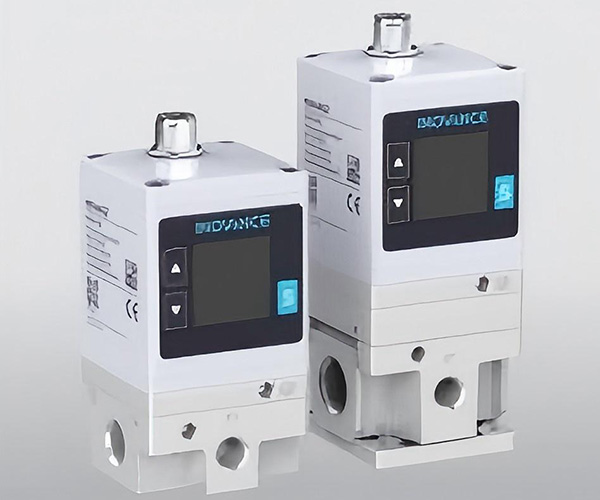

Inovance proportional valve & solenoid valves, CHNGT cylinders for breaking table ejector rods Benefit: Auto cutting pressure matching for 3–19mm glass without manual adjustment; synchronized pneumatic breaking rod control

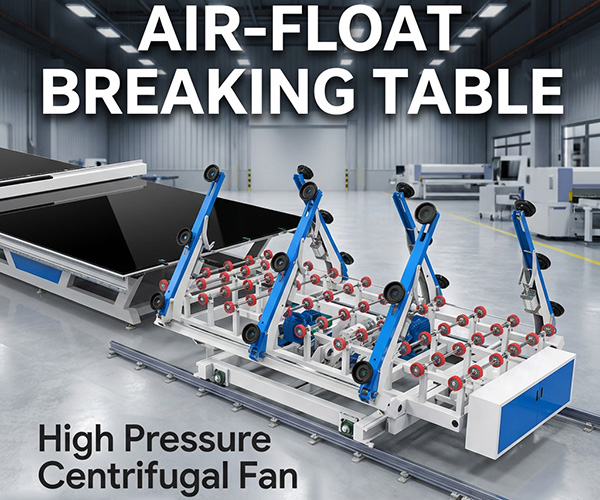

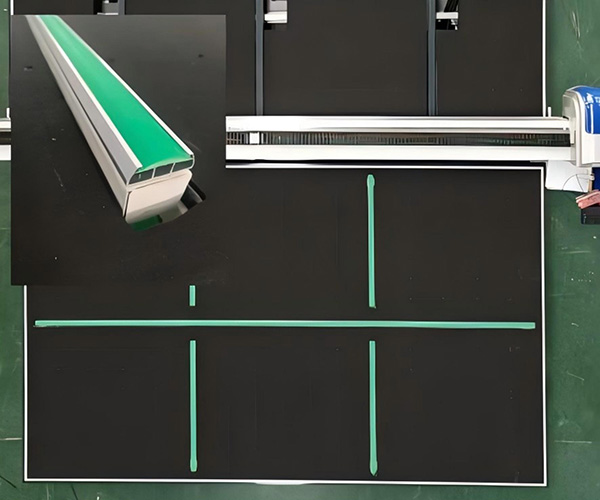

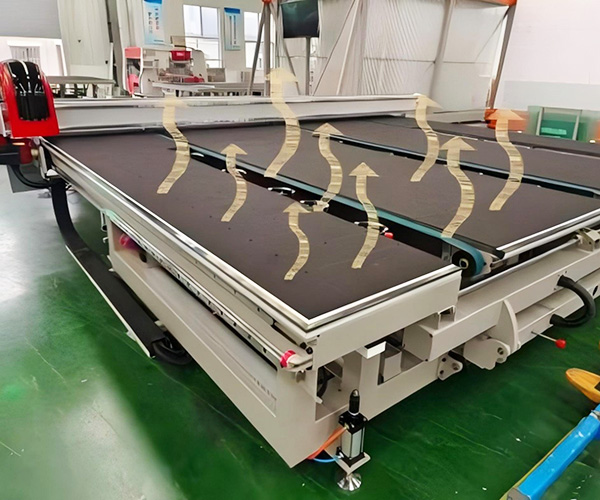

(6) Air-Floating Conveying & Breaking Table Countertop

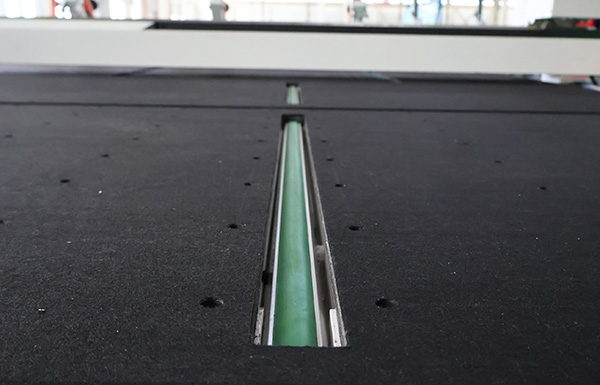

High-density waterproof board covered with anti-static industrial felt, full 4mm air flotation holes + 4.0KW centrifugal fan Benefit: Zero scratch during glass conveying in humid workshops, effortless glass moving & splitting

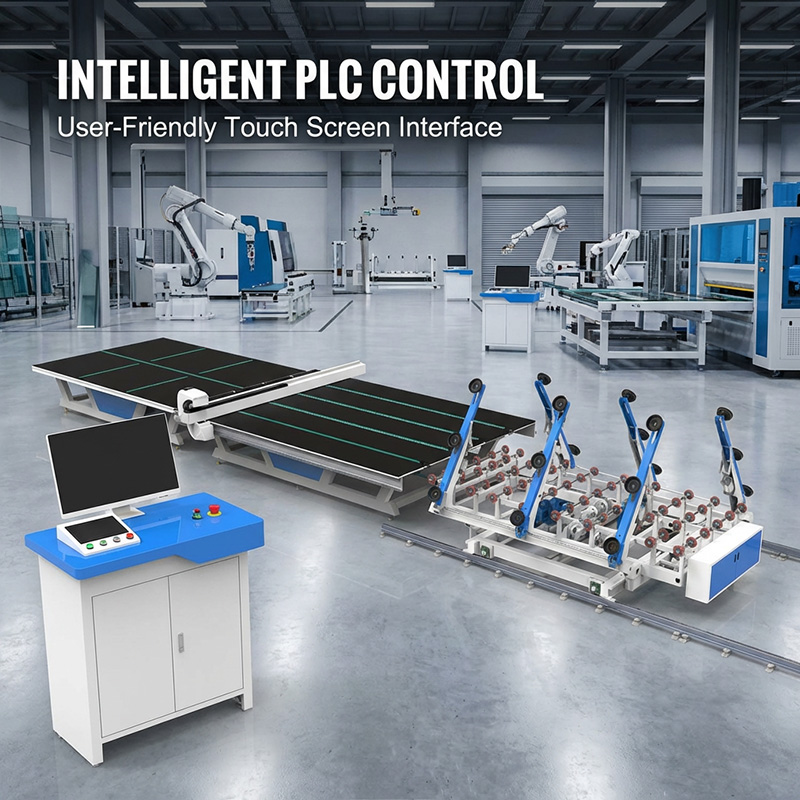

(7) Full Line Electric Control System
DELTA PLC for loading table, Shihlin servo drivers, Weimin dedicated glass cutting control system, OMRON encoder, Panasonic fiber optic edge sensor; Compatible with OPTIMA / Guiyou nesting software & DXF files Benefit: Full line linkage control, zero positioning deviation, real-time fault alarm & multi-language touch screen operation
3. Premium Advantages
· Beltless 3-axis servo direct drive cutting system maintains consistent repeat cutting accuracy ±0.2mm/m

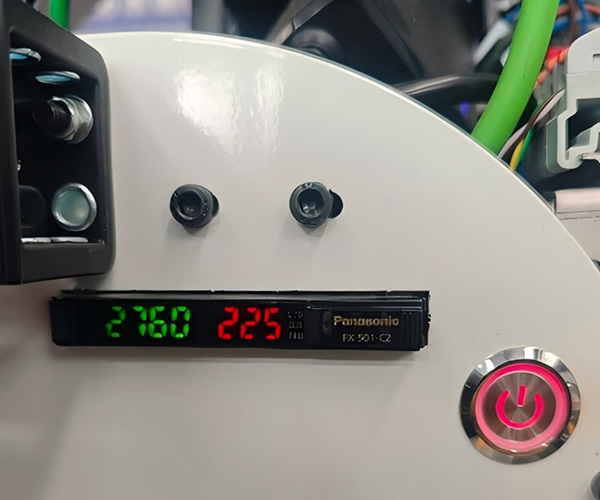

· Panasonic fiber optic auto edge sensor automatically detects glass position & deflection angle
·Stress-relief heavy-duty frame for loading table & cutting machine ensures long-term stable machining precision

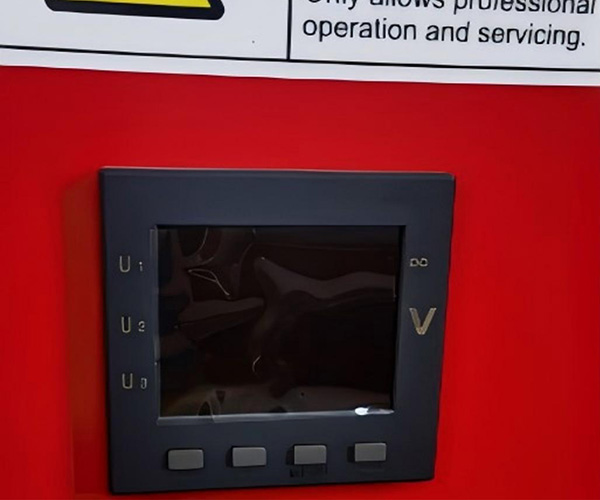

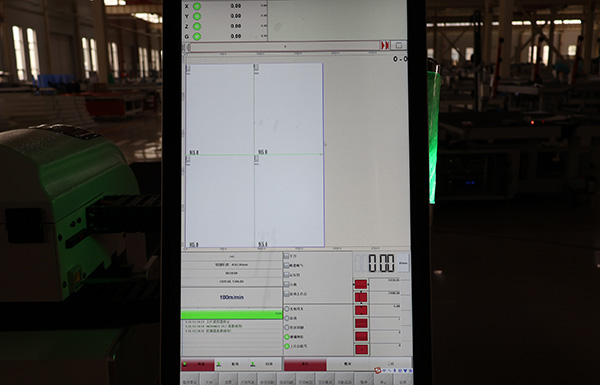

· Multi-language CNC touch controller with real-time voltage & full-line operation monitoring system

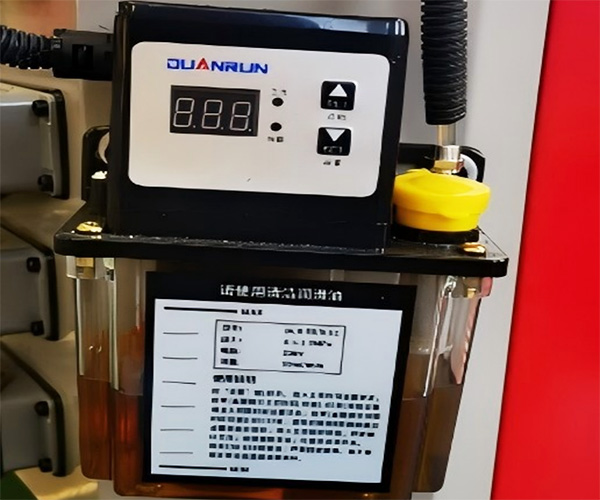

·Auto rail lubrication + PLC synchronized cutting oil supply, greatly reduce daily manual maintenance workload
· 3-section integrated unmanned production line: auto flip loading → CNC shaping cutting → air-float pneumatic breaking, only 1 operator needed
·Optional LOW-E film removal & auto labeling modules to realize one-stop insulated glass processing
· Precision Frame Manufacturing Stress-aged welded frames for 3 line sections, grade 6 gear racks & imported bearings, stable precision for 10+ years. Benefit: Low deformation, less long-term maintenance cost.
· Global Genuine Brand Parts Shihlin, Inovance, OMRON, Panasonic, DELTA, CHNGT original parts, global accessible spare parts. Benefit: Fast local part replacement abroad, reduce downtime.
· Strict Full-Line Pre-shipment Test 72h linked aging test, full calibration of precision, vacuum, pneumatic & electric systems. Benefit: Ready for production after delivery, no order delay.
· Standard Warranty 1-year warranty for frames & electric components (wear parts excluded), free remote support. Benefit: No extra service fees within warranty.
· Complete After-sales Support Dual-language manuals, 24/7 remote debugging, optional overseas on-site training. Benefit: Quick commissioning, faster ROI.
· CE Certified & Lifelong Upgrade CE safety design with emergency stop, free software updates & lifelong spare parts supply. Benefit: Meet EU standards, fit all new glass processing techniques.
