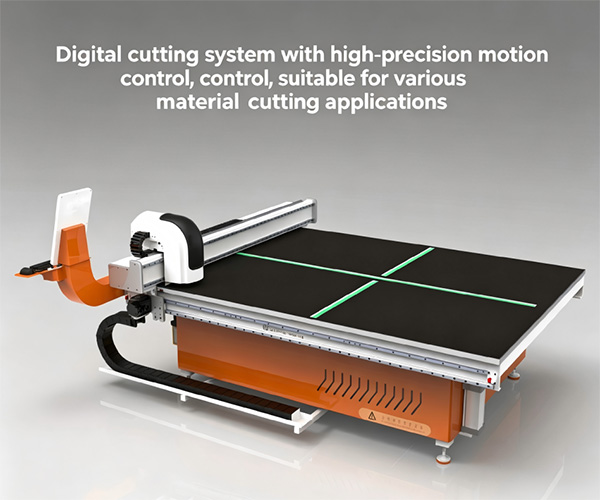

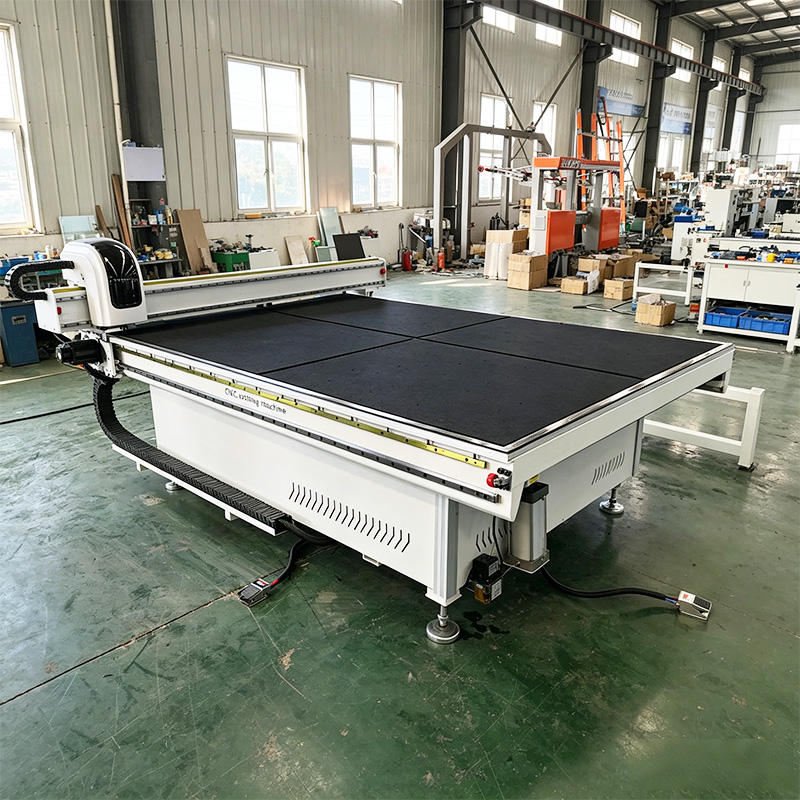

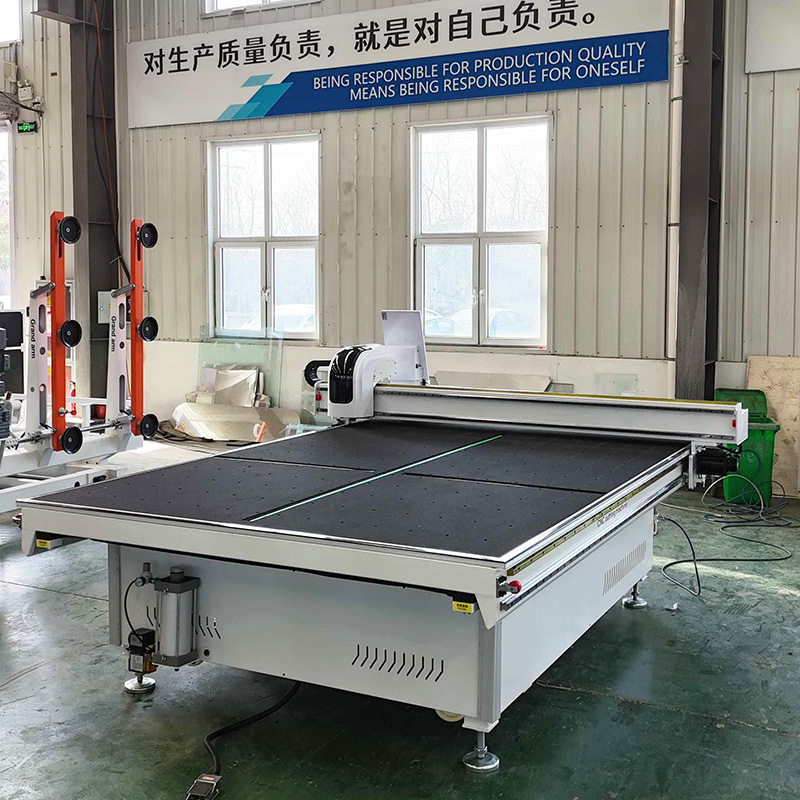

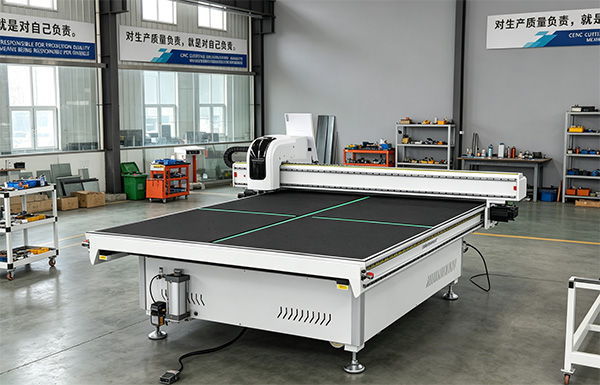

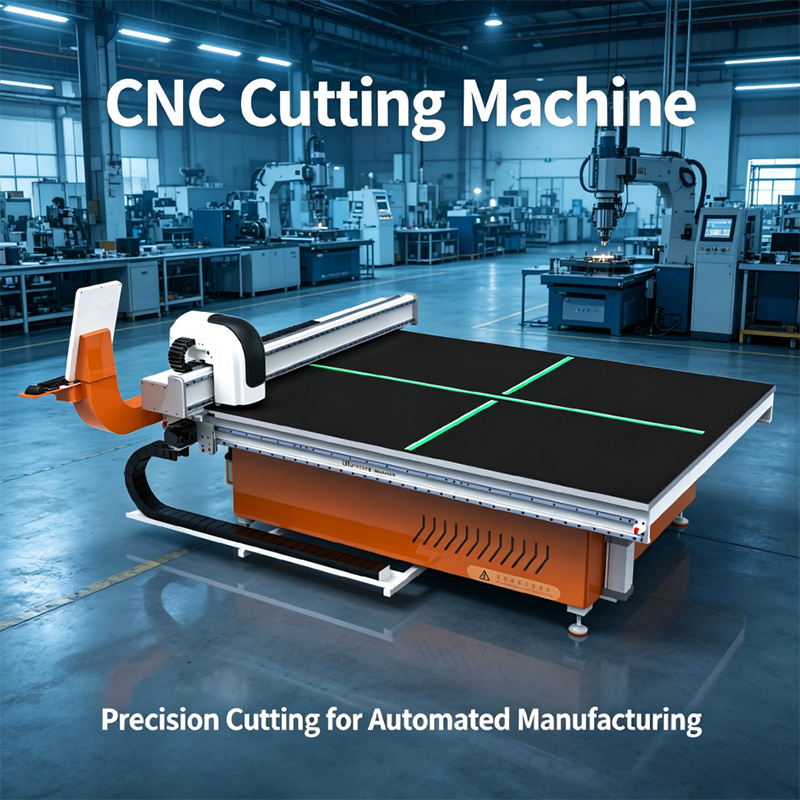

CNC2721 Standalone Glass Cutting Machine | Automatic CNC Cutter for Architectural Furniture Mirror Glass
The CNC2721 Standalone Glass Cutting Machine is a cost-effective automatic glass cutting solution for medium & small glass factories. Built for stable mass production, it equips Panasonic fiber optic edge detection, high-speed servo direct drive cutting system and compact standalone frame without built-in conveying line.
Supported by professional nesting software compatible with OPTIMA and Guiyou G-code, the machine greatly improves glass utilization and cuts raw material costs. Adopting imported servo motors and 6-grade ground helical gear racks, the heavy-duty frame supports long-term non-stop production with stable cutting accuracy ≤±0.3mm/m. It perfectly handles architectural glass, cabinet glass, decorative mirrors and irregular shaped glass, bringing reliable speed and precision for global glass processors.

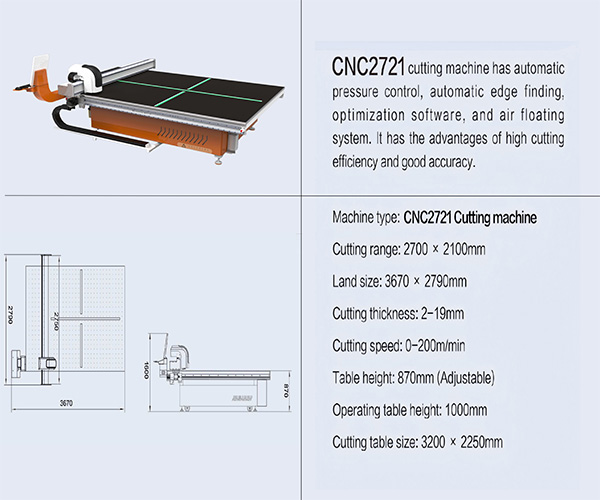

| Item | Item description | |
Machine and technical parameters | Dimensions | Length*width*height: about：3660mm*3185mm*1600mm |
| Countertop size | Length*width about :3200mm*2250mm | |
| Countertop height | 880±30mm (foot adjustable) | |
| Power Requirements | Three fires and one ground wire 380V ( special voltages should be communicated in advance ) | |
| Installed power | About 6kw | |
| Compressed air | 0.6 -0.8 Mpa exhaust volume 0.6-1m3/min | |
| Glass size | MAX.2700*2100mm | |
| Glass thickness | 3～19mm | |
| Cutting head speed | 0-2 0 0M/min ( can be set ) | |
| Cutting bridge speed | 0-2 0 0M/min ( can be set ) | |
| Cutting acceleration | ≥8m/s² | |
| Cutting knife holder | cutting knife can rotate 360 degrees(accurately cut line and special shape) | |
| Cutting accuracy | ≤±0.3mm/m(based on the cutting size before breaking) | |
· Professional Nesting Software | Compatible with OPTIMA & Guiyou G-code, maximize glass utilization and cut raw material costs
· Panasonic Fiber Optic Edge Detection | Auto capture glass position & tilt, eliminate manual calibration work
· Rich Built-in Shape Templates | Support triangle, polygon, rounded & all irregular glass cutting
· Intelligent Auto Pressure Matching | Auto adjust cutting force for 3–19mm different glass thickness
· Air-Float Anti-Scratch Worktable | Centrifugal fan floating design to prevent glass surface damage
· Cylinder Breaking Ejector Rods | Effortless splitting after cutting, reduce scrap rate
· Beltless Servo Direct Drive System | X/Y servo motor + 6-grade helical gear rack, quiet and long service life

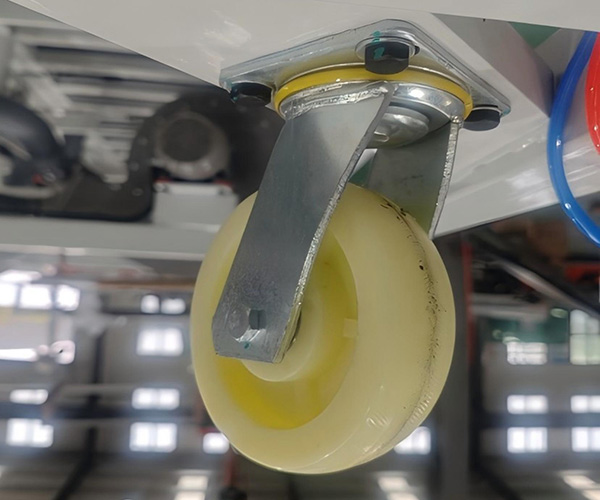

· Movable Machine Frame | Universal wheels + adjustable foot pads for flexible workshop layout
· Optional Upgrade Modules | Glass conveying mechanism & auto labeling system for labor saving
· Thickened Welded Industrial Frame Detail: Thick profile frame with aging & gantry machining to resist deformation Benefit: Stable precision for 24/7 continuous mass production
· 360° Rotatable High-Precision Cutting Head Detail: Match auto pressure for 3–19mm all glass thickness, German Bohle cutting wheel Benefit: Clean, burr-free cutting edges for architectural & decorative glass

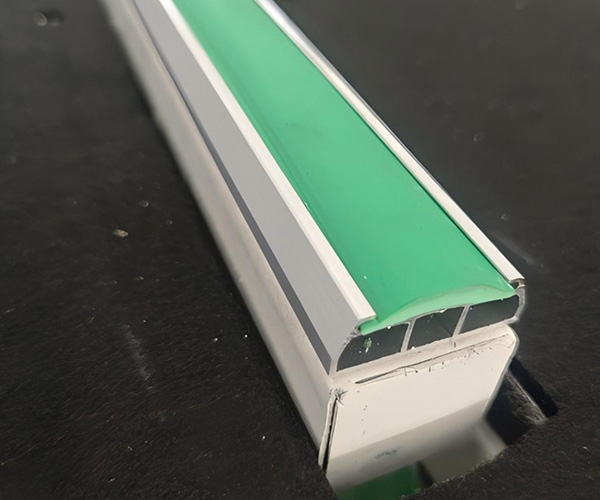

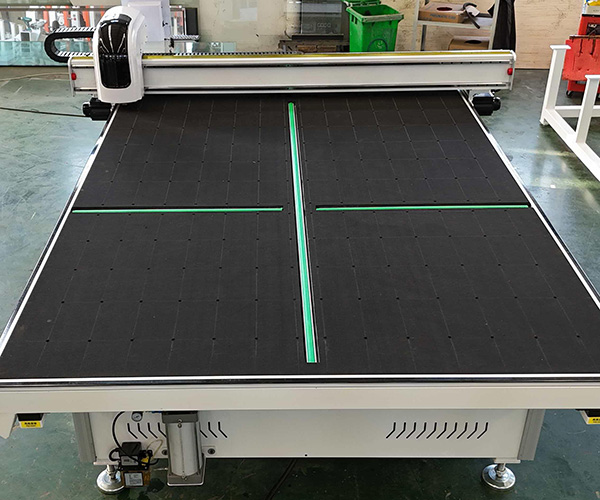

· Centrifugal Fan Air-Float Worktable Detail: Built-in air flotation holes to form uniform air cushion Benefit: Easy glass moving, effectively avoid surface scratches
· Beltless X/Y Servo Direct Drive System Detail: Imported servo motors + 6-grade ground helical gear rack Benefit: Max speed 200m/min, low noise, consistent precision ≤±0.3mm/m
· Full Set Famous Brand Standard Components Detail: Panasonic fiber sensor, SMC proportional valve, AirTac cylinder Benefit: Stable operation, low failure rate, easy after-sales maintenance
· Optional Upgrade Modules Detail: Independent glass conveyor & auto labeling system Benefit: Further reduce manual labor and improve production efficiency
· Reinforced industrial thickened frame, anti-deformation for long-term stable running
· 360° rotatable cutting head, fit 3–19mm glass, smooth burr-free cutting edge
· Air-float table with centrifugal blower, anti-scratch glass moving
· Grinding-grade helical gear rack transmission, stable cutting precision
· Stable Precision Frame Thickened welded profile frame with aging treatment and gantry machining, effectively avoid deformation and maintain consistent cutting accuracy for years.
· Famous Brand Core Components Key electric & pneumatic parts equipped with Panasonic fiber sensor, SMC proportional valve, AirTac cylinder and Delixi electric parts, stable performance & low failure rate.

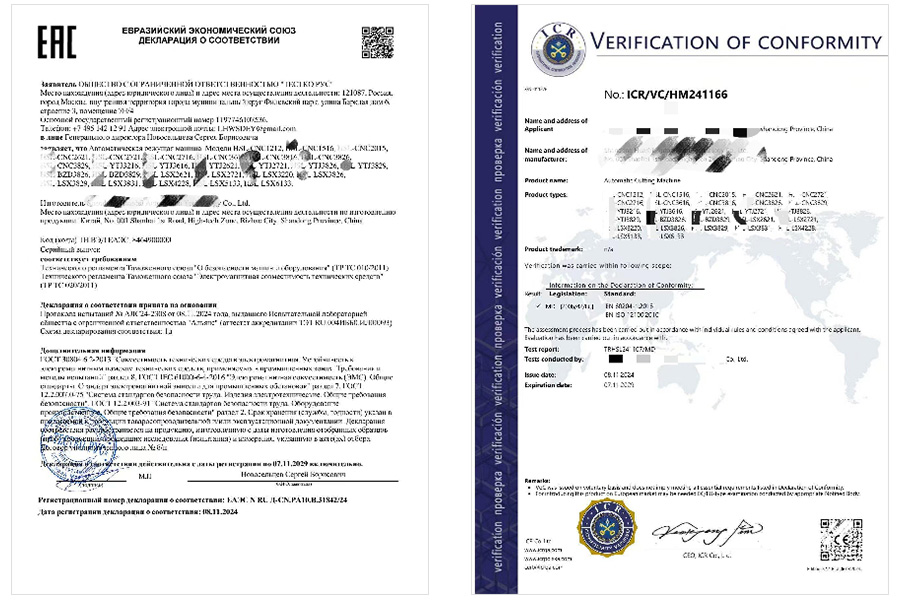

· Strict Factory Inspection Every machine undergoes full functional inspection and real glass cutting test before shipment, plus 48-hour continuous stress aging test. All machines meet CE & ISO9001 production standards.
· Durable Low-Maintenance Design Optimized mechanical transmission structure, easy daily lubrication and maintenance to cut labor costs.
· Global After-Sales & Spare Parts Support Professional overseas technical guidance online. Abundant original spare parts in stock with fast global delivery to shorten production downtime.
EN: Quality is our core reputation, every machine passes strict multi-step testing.
1.24/7 Tech Help: Real-time expert guidance via WhatsApp/Video.
2.Remote Fix: Instant remote diagnosis & software tuning.
3.Express Parts: Original parts shipped worldwide via DHL in 48h.
4.1-Year Warranty: 12-month full coverage + Lifetime support.
Why Choose Us?
"We don't just sell a machine; we guarantee your production uptime."
