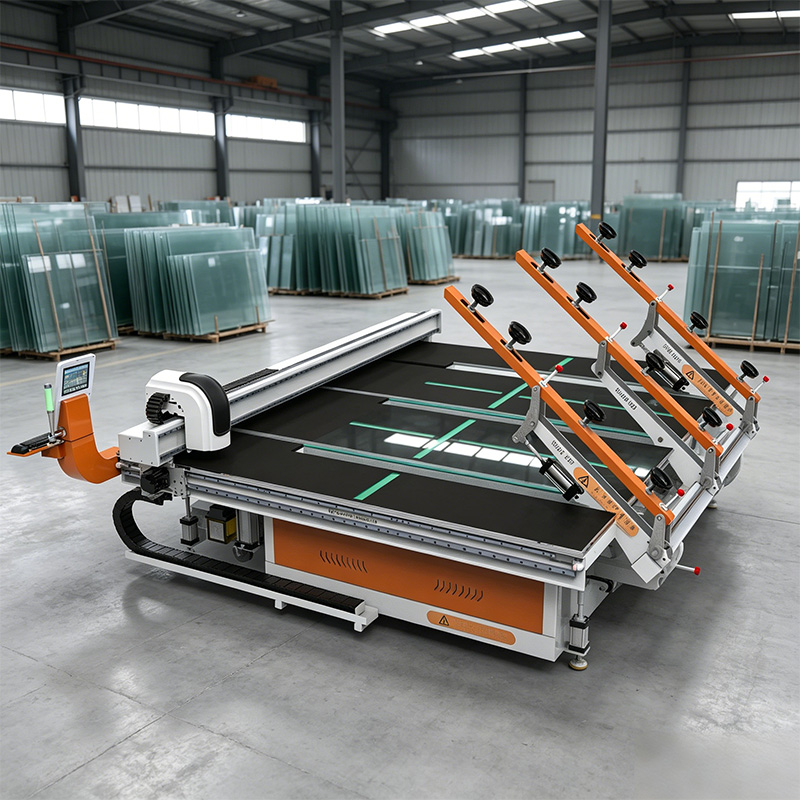

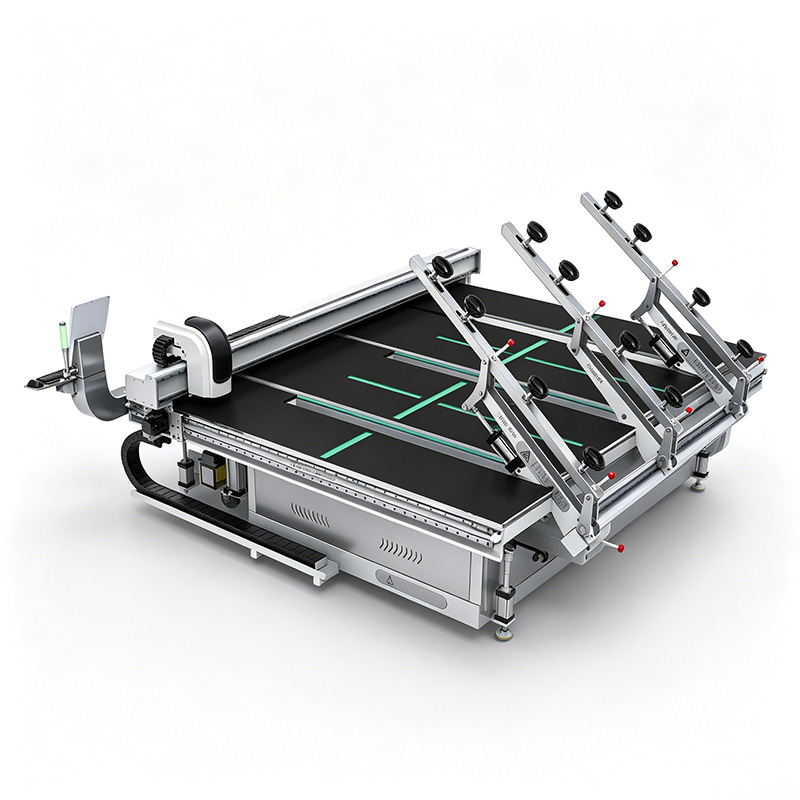

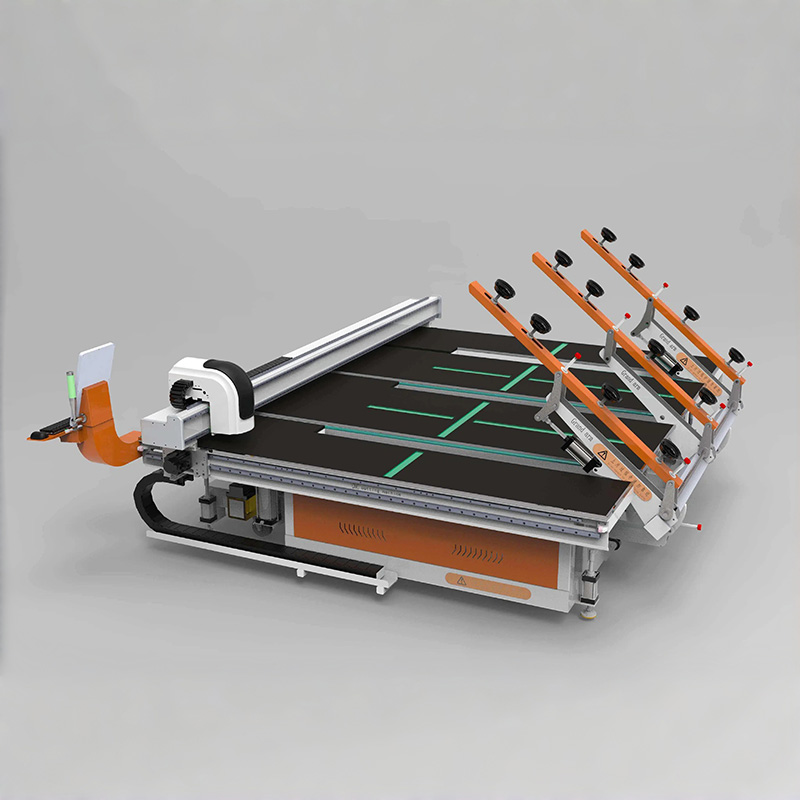

Automatic All-in-One Glass Loading Cutting Equipment YTJ3829

Tired of slow manual loading, poor profiling accuracy and massive glass waste? YTJ3829 integrated glass cutting machine without separate breaking table is customized for small & medium glass factories. Installed power reaches 14.2kW, floor dimension 3790×4925×1600mm, countertop height 880±30mm, suitable for 3–18mm architectural, furniture, mirror and cabinet glass processing. Equipped with telescopic boom auto loading and Weimin dedicated glass cutting control system, cutting head speed 0–200m/min, cutting acceleration ≥8m/s². It supports straight line, circle, polygon and custom profiling cutting. Intelligent nesting software improves raw glass utilization rate; remote walking design realizes flexible workshop shifting. Auto lubrication and self-adaptive pressure cut maintenance cost. Optional labeling and LOW-E film removal functions meet both ordinary and energy-saving coated glass production, effectively expand your order range & profit margin.

Key Standard Features

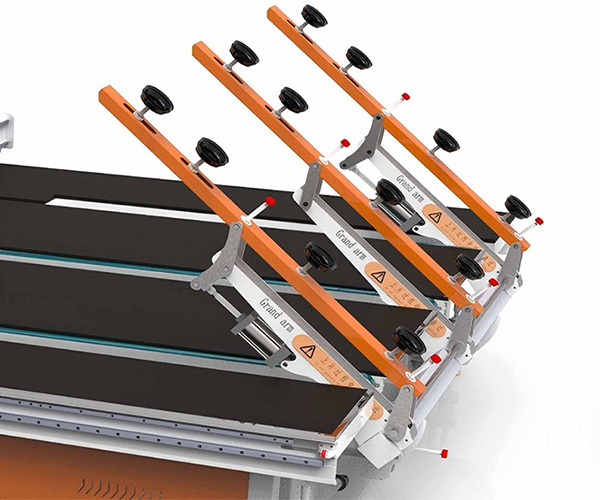

·  Auto Telescopic Loading System

3 retractable booms with total 12 imported double-layer NBR suction cups, 700mm loading depth & anti-dual-sheet design. Remote machine moving function with auto cylinder locking to stabilize cutting operation.

Benefit: Stable suction for oversized glass sheets, eliminate double-glass breakage risk, 100% improvement on loading efficiency.

·  High Precision Beltless Servo Cutting System

Grade 6 ground helical gear rack + Shihlin X/Y axis servo direct drive without belts. Cutting acceleration ≥8m/s², 0–200m/min adjustable cutting speed, 360° rotatable cutter head for straight & irregular profiling cutting. Equipped with fiber optic auto edge detection, self-adaptive cutting pressure, synchronized auto oil feeding and automatic rail lubrication.

Benefit: Zero clearance deviation during long-hour continuous operation, unified cutting tolerance ≤±0.3mm/m, less rework & daily maintenance workload.

·  Intelligent Nesting & Profiling CNC Software

Compatible with OPTIMA, Guiyou standard G-code and DXF files. Intelligent nesting program maximizes glass utilization rate and reduces raw sheet waste. Built-in abundant special-shaped template library, supports scanning physical templates to generate cutting graphics automatically.

Benefit: Friendly for new operators, no professional full-time draftsman needed, lower labor recruitment threshold.

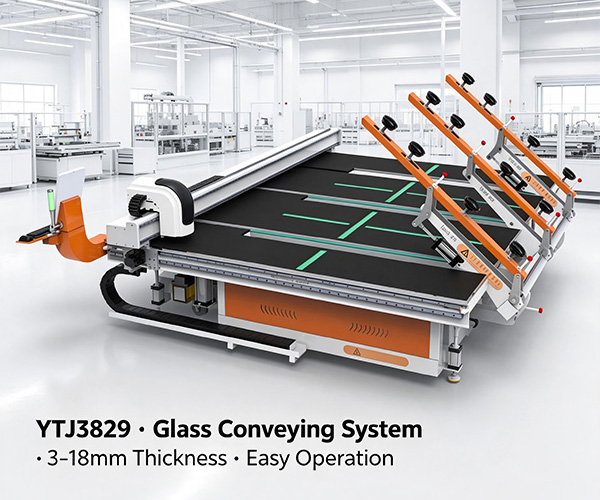

·  Auto Glass Conveying & Auxiliary Breaking Ejector Rods

3 conveyor belts with auto drag function to save positioning time; 1 horizontal & 2 vertical pneumatic ejector rods for convenient glass splitting. Air float design avoids scratch on glass surface.

Benefit: Entire cutting process with minimal manual intervention, greatly boost overall production throughput.

·  Real-Time Full Safety Monitoring Live digital voltage detection linked with auto fault alarm system. Adopt global well-known brand pneumatic and electrical components for long-term stable running.

Benefit: Timely fault warning prevents unexpected machine shutdown, extend overall machine service life.

·  Optional Add-Ons

·  Auto Labeler

Automatically print & paste labels with glass size, serial number, customer info, QR codes and processing parameters.

Benefit: Replace manual labeling, improve sorting efficiency and reduce human error.

·  HIGH-Performance LOW-E Film Remover

Supports rectangular & irregular shaped film removal, equipped with auto dust removal & pressure compensation; 20mm / 25mm grinding wheels optional.

Benefit: Meet high-end insulated glass processing demands, increase product profit margin and expand order sources.

·  Applications

Applicable Glass Types: Architectural window, curtain wall & insulated glass; Furniture & cabinet tabletop glass; Bathroom & cosmetic decorative mirrors; Art painted & custom shaped decorative glass; Household appliance supporting glass (refrigerator, oven glass). Processable Shapes: Rectangle, circle, triangle, rounded quadrilateral, pentagon & all custom irregular profiles. Standard Processing Specs: Max processing dimension 3660×2800mm, applicable glass thickness 3–18mm. Inform us in advance if you need to process glass thinner than 3mm or thicker than 12mm. Ideal Business Partners: Small & medium glass deep processing factories, door & window manufacturing workshops, furniture glass processing plants, mirror production factories. Benefit: One single machine covers all mainstream glass processing businesses, save extra equipment investment and factory space cost.
